What are the key properties that make Inconel 600 suitable for high-temperature applications?
There are several key properties that make Inconel 600 well-suited for high-temperature applications:
High-Temperature Strength:
Inconel 600 maintains excellent mechanical strength and resistance
to creep and deformation at high temperatures, up to around 1100°C.
This allows Inconel 600 components to withstand high stresses and
loads at elevated temperatures.
Oxidation Resistance:
Inconel 600 forms a tightly adherent, protective chromium oxide
(Cr2O3) layer on the surface.
This oxide layer prevents further oxidation and degradation of the
alloy at high temperatures, even in highly oxidizing environments.
Corrosion Resistance:
Inconel 600 exhibits excellent resistance to a wide range of
corrosive media, including acids, alkalis, and salts, even at high
temperatures.
This corrosion resistance helps maintain the integrity of Inconel
600 components in harsh, high-temperature environments.
Thermal Stability:
Inconel 600 maintains its microstructure and properties at high
temperatures, without significant phase changes or
recrystallization.
This thermal stability ensures consistent performance and
reliability of Inconel 600 components over long periods of
high-temperature service.
Thermal Expansion:
Inconel 600 has a relatively low coefficient of thermal expansion, which helps minimize issues like thermal stresses and distortion during high-temperature operation.
What are the common applications where Inconel 600 is used due to its high-temperature properties?
Inconel 600 is commonly used in a variety of high-temperature applications due to its excellent high-temperature properties, including:
Power Generation:
Turbine components (blades, vanes, discs) in gas turbine engines
Combustion chamber components in gas turbines
Heat exchanger tubing in nuclear power plants
Aerospace:
Jet engine components (afterburner parts, combustion liners,
exhaust systems)
Rocket engine components (nozzles, thrust chambers, valve parts)
Airframe components exposed to high temperatures
Chemical Processing:
Reaction vessels, heat exchangers, and piping in the production of
corrosive chemicals
Components in sulfuric acid, phosphoric acid, and other aggressive
chemical environments

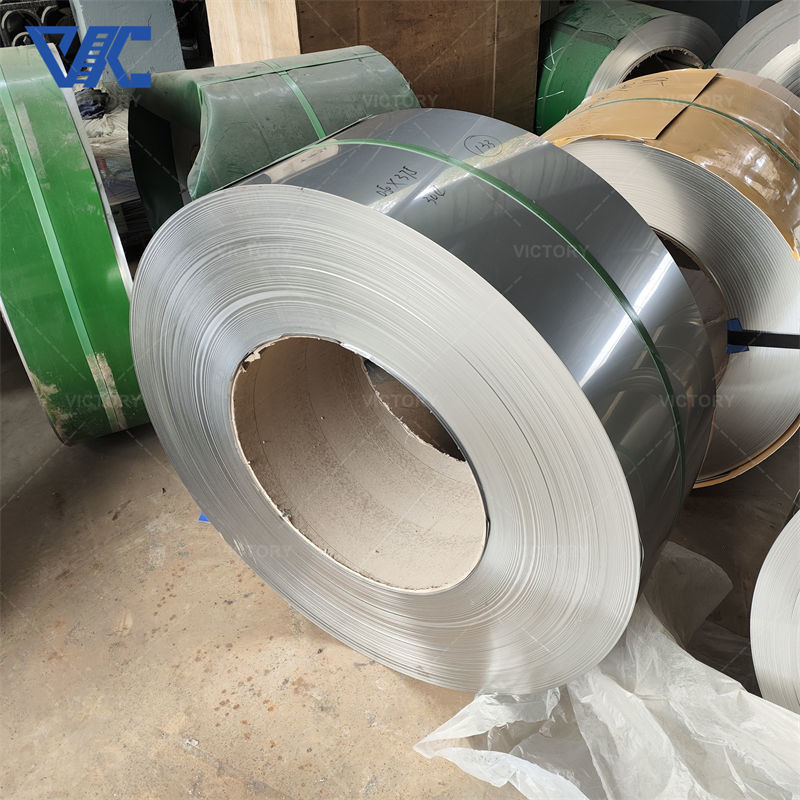

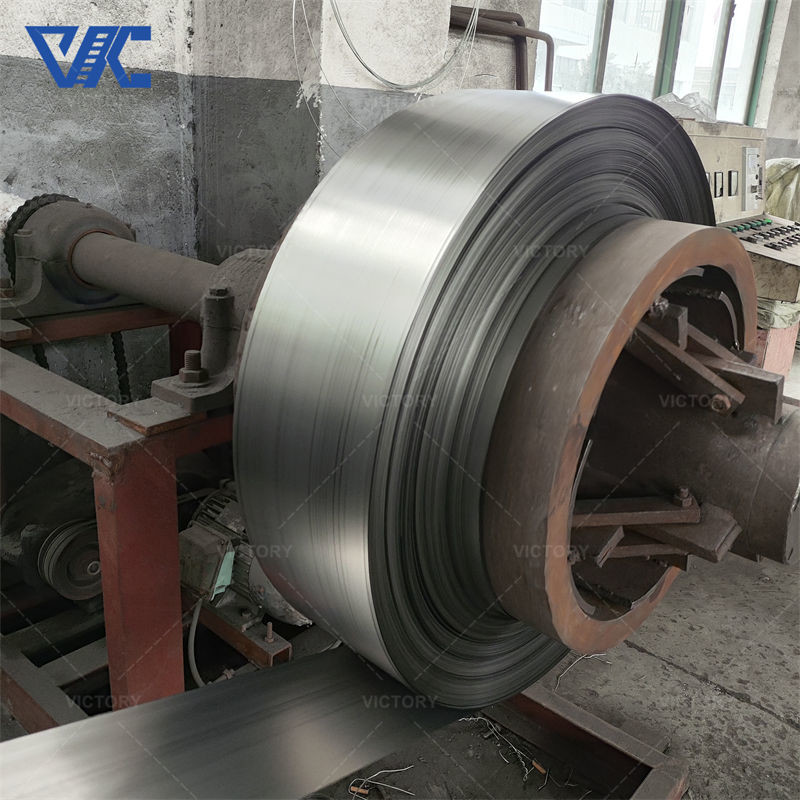

The production process of inconel 600 strip
The production process for Inconel 600 strip typically involves the following key steps:
Melting and Casting:
Inconel 600 is produced by melting the raw materials, which include
nickel, chromium, and other alloying elements, in an electric arc
furnace or induction furnace.
The molten metal is then cast into ingots or billets for further
processing.
Homogenization:
The cast ingots or billets are subjected to a homogenization heat
treatment to ensure a uniform chemical composition and
microstructure throughout the material.
Hot Rolling:
The homogenized billets are heated to the appropriate temperature
and then passed through a series of rolling stands to reduce the
thickness and shape the material into a strip or sheet form.
The rolling process helps refine the grain structure and improve
the mechanical properties of the Inconel 600.
Annealing:
After hot rolling, the Inconel 600 strip is subjected to an
annealing heat treatment to recrystallize the microstructure and
relieve any internal stresses introduced during the rolling
process.
The annealing temperature and duration are carefully controlled to
achieve the desired mechanical and physical properties.
Cold Rolling:
Depending on the final thickness requirements, the annealed Inconel
600 strip may undergo additional cold rolling passes to further
reduce the thickness and improve the surface finish.
Cold rolling can also enhance the strength and hardness of the
material.
Final Annealing:
After the final cold rolling pass, the Inconel 600 strip undergoes
a final annealing treatment to stabilize the microstructure and
optimize the mechanical properties.
Inspection and Finishing:
The processed Inconel 600 strip is inspected for compliance with quality standards, and any necessary surface finishing operations, such as pickling or passivation, are performed.
Chemical Properties of Inconel 600
C | Cr | Ni+Co | Al | Ti | Fe | Nb+Ta | Mn | Si | P | S | Cu |
≤0.15 | 14.0~17.0 | ≥72 | ≤0.35 | ≤0.50 | 6.0~10.0 | ≤1.0 | ≤1.0 | ≤0.5 | ≤0.04 | ≤0.015 | ≤0.5 |
ITEM | θ/℃ | TENSIE STRENGTH | HBS | |||
σb/MPa | σP0.2/MPa | δ5/% | φ/% | |||
BAR/ROD | 20 | ≥585 | ≥240 | ≥30 | - | 134~217 |
RING | 20 | ≥520 | ≥205 | ≥35 | - | ≥187 |
HOT ROLL PLATE | 20 | ≥550 | ≥240 | ≥35 | ≥40 | - |
900 | ≥95 | ≥45 | ≥40 | ≥50 | - | |
COLD ROLLED SHEET | 20 | ≥550 | ≥240 | ≥30 | - | - |
900 | ≥90 | ≥40 | ≥60 | - | - | |
COLD ROLLED SHEET | 20 | ≥550 | ≥200 | ≥30 | - | - |
STRIP | 20 | ≥550 | ≥240 | ≥30 | - | - |
WIRE | 20 | - | HV≤151 |
Shape | Size(mm) |
WIre | 0.5-7.5 |
Rod/Bar | 8.0-200 |
Strip | (0.5-2.5)*(5-180) |
Tube | custom made |
Plate | custom made |
