Excellent Corrosion Resistant Superalloy Nickel Chrome Inconel 600 Seamless Tube Welded Pipe

Ask Lasest Price
Brand Name :	Victory
Model Number :	Inconel 600
Certification :	ISO9001 ROHS
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	300 tons per month
Delivery Time :	20~40 Days

Add to Cart

Product Details
Company Profile

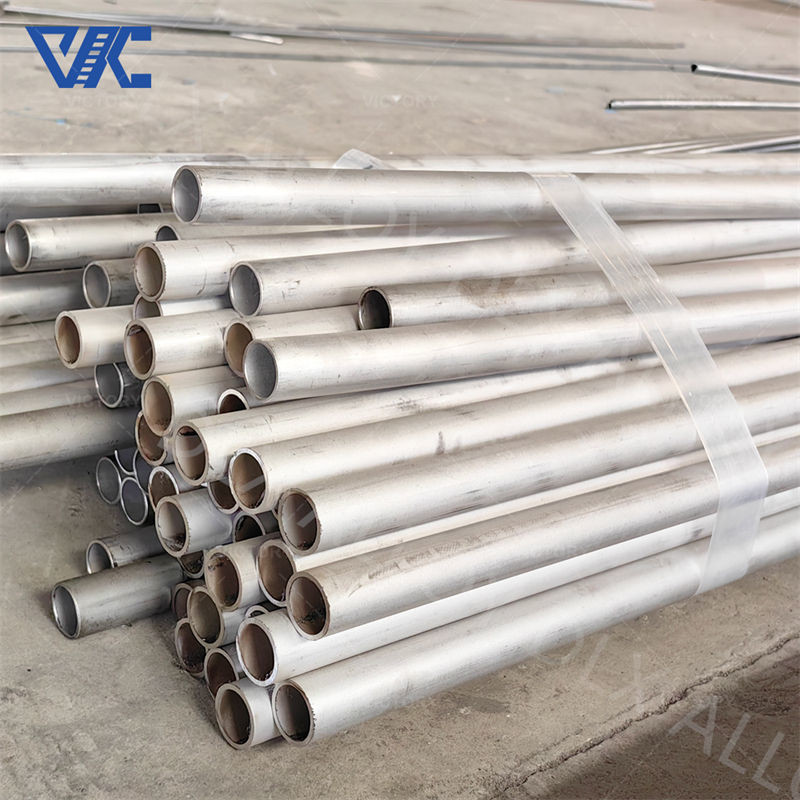

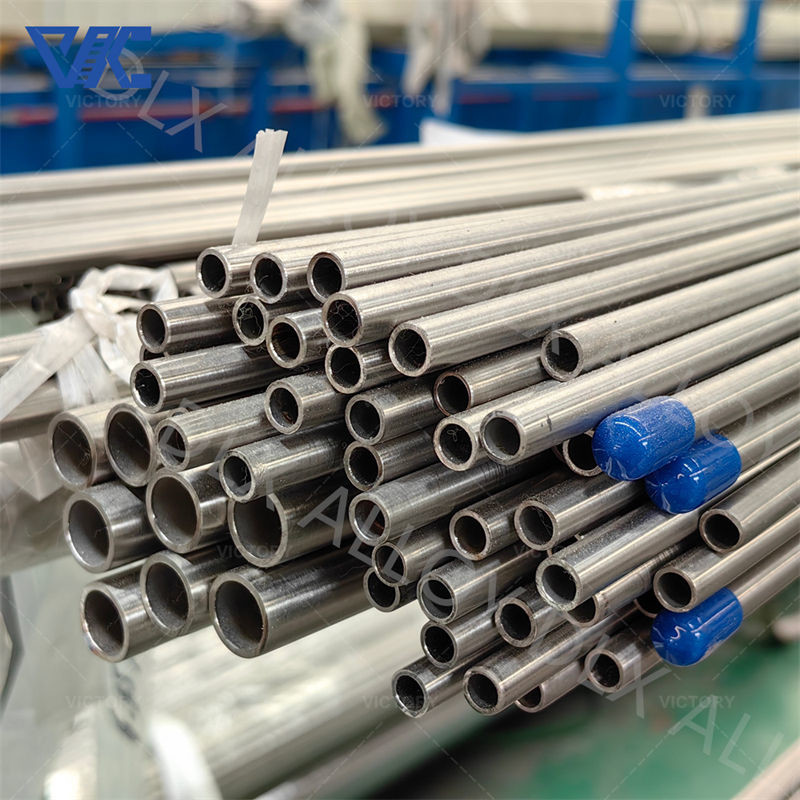

Excellent Corrosion Resistant Superalloy Nickel Chrome Inconel 600 Seamless Tube Welded Pipe

The performance characteristics of Inconel 600 tube

Excellent corrosion resistance: Inconel 600 has outstanding corrosion resistance, capable of withstanding many corrosive environments, such as the chemical industry, marine environments, and high temperature environments.

High temperature resistance: Inconel 600 tubing can be used for long-term service at temperatures up to 1100°C, making it suitable for high temperature industrial applications.

Good mechanical properties: Inconel 600 tubing has relatively high strength, toughness and fatigue performance, able to withstand high mechanical stresses.

Low thermal expansion coefficient: Inconel 600 has a low thermal expansion coefficient, which is beneficial for maintaining dimensional stability of the tubing under temperature variations.

Excellent oxidation resistance: Inconel 600 tubing can form a dense oxide layer at high temperatures, effectively preventing further oxidation of the inner metal.

The differences between seamless and welded tubing/pipes

Manufacturing process:
Seamless tubes are produced by piercing a solid billet or ingot and then further reducing the diameter and increasing the length.
Welded tubes are formed by bending a flat metal sheet/strip and joining the edges together using a welding process.

Structural integrity:
Seamless tubes have a more uniform and continuous structure without any welded seams.
Welded tubes have a welded joint along the length, which can be a potential weak point.

Surface quality:
Seamless tubes generally have a smoother and more uniform surface finish.
Welded tubes may have some surface irregularities along the weld line.

Strength and toughness:
Seamless tubes typically have higher strength and impact toughness compared to welded tubes.
The weld joint in welded tubes can be a point of weakness.

Cost and availability:
Seamless tubes are generally more expensive to manufacture than welded tubes.
Welded tubes are often more readily available and can be produced in a wider range of sizes and shapes.

Parameter:

Chemical Properties of Inconel 600

C	Cr	Ni+Co	Al	Ti	Fe	Nb+Ta	Mn	Si	P	S	Cu
≤0.15	14.0～17.0	≥72	≤0.35	≤0.50	6.0～10.0	≤1.0	≤1.0	≤0.5	≤0.04	≤0.015	≤0.5

ITEM	θ/℃	TENSIE STRENGTH				HBS
ITEM	θ/℃	σb/MPa	σP0.2/MPa	δ5/%	φ/%	HBS
BAR/ROD	20	≥585	≥240	≥30	-	134～217
RING	20	≥520	≥205	≥35	-	≥187
HOT ROLL PLATE	20	≥550	≥240	≥35	≥40	-
HOT ROLL PLATE	900	≥95	≥45	≥40	≥50	-
COLD ROLLED SHEET	20	≥550	≥240	≥30	-	-
COLD ROLLED SHEET	900	≥90	≥40	≥60	-	-
COLD ROLLED SHEET	20	≥550	≥200	≥30	-	-
STRIP	20	≥550	≥240	≥30	-	-
WIRE	20				-	HV≤151

Shape	Size(mm)
WIre	0.5-7.5
Rod/Bar	8.0-200
Strip	(0.5-2.5)*(5-180)
Tube	custom made
Plate	custom made

contact us

email:victory@dlx-alloy.com

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service

Excellent Corrosion Resistant Superalloy Nickel Chrome Inconel 600 Seamless Tube Welded Pipe
