    Np2 Np1 Fil De Pure Nickel Wire 0.025mm In Electric Apparatus

    Ask Lasest Price
    Brand Name : Victory
    Model Number : N4,N6,Ni200,Ni201
    Certification : ISO9001,ROHS
    Price : 5 - 99 kilograms US$45.00
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 300 tons per month
    Delivery Time : 7-25 days
    • Product Details
    • Company Profile

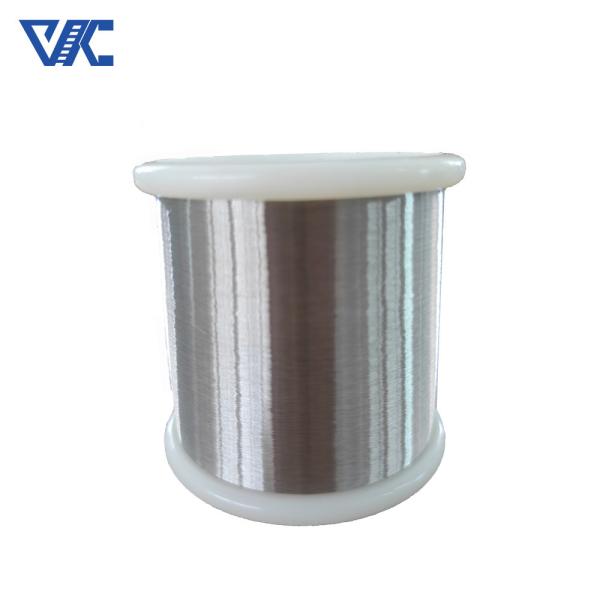

    Np2 Np1 Fil De Pure Nickel Wire 0.025mm In Electric Apparatus

    Pure nickel wire is a wire-shaped product made of high-purity nickel material with excellent performance characteristics. It not only has excellent corrosion resistance and high temperature stability, but also has good electrical conductivity and mechanical strength. Therefore, pure nickel wire is widely used in many fields such as electronics, electrical, heating, automobile, chemical and medical. Manufacturers can customize the specifications and characteristics of pure nickel wire according to customer requirements to meet the needs of various applications.

    The corrosion resistance of pure nickel wire makes it perform well in corrosive media, such as acidic and alkaline solutions, salt water and chemical gases. It can be used for a long time in these harsh environments without damage.

    The high temperature stability of pure nickel wire allows it to operate in high temperature environments such as furnace heating elements, high temperature sensors and gas turbine applications. It can withstand deformation and creep at high temperatures, maintaining its performance and shape stability.

    Pure nickel wire has excellent electrical conductivity and can effectively conduct current, playing a key role in electronic components and circuits.

    In addition, pure nickel wire also has good mechanical strength and can withstand certain stretching and deformation, making it suitable for various mechanical applications.



    Functions/Applications:
    1. manufacturing nickel-cadmium battery
    2. nickel-hydrogen battery
    3. lithium cell
    4. assembled battery
    5. industries of electric tool and special lights
    6. Superconductor Applications


    Specification

    GradeNi+CoCuSiMnCMgSPFe
    N499.80.0150.030.0020.010.010.0010.0010.04
    N699.60.100.100.050.100.100.0050.0020.10
    Ni201≥99.0≤0.25≤0.35≤0.35≤0.02/≤0.01/≤0.40
    Ni200≥99.2≤0.25≤0.35≤0.35≤0.15/≤0.01/≤0.40

    Physical Data
    Density8.89g/cm3
    Specific Heat0.109(456 J/kg.ºC)
    Electrical Resistivity0.096×10-6ohm.m
    Melting Point1435-1446ºC
    Thermal Conductivity70.2 W/m-K
    Mean Coeff Thermal Expansion13.3×10-6m/m.ºC
    Typical Mechanical Properties
    Mechanical PropertiesNickel 200
    Tensile Strength462 Mpa
    Yield Strength148 Mpa
    Elongation47%

    Our Production Standard
    BarForgingPipeSheet/StripWire
    ASTMASTM B160ASTM B564ASTM B161/B163/B725/B751AMS B162ASTM B166
