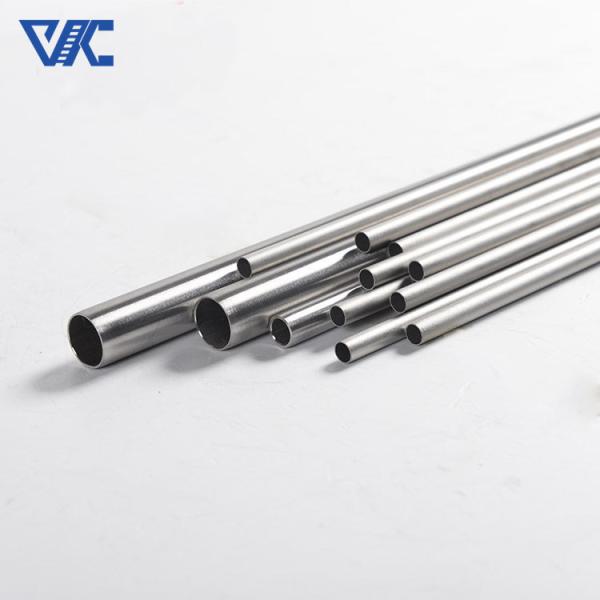

Monel 400 C276 C4 C22 16mm Pure Nickel Alloy Inconel 601 625 718 Tube

Ask Lasest Price
Brand Name :	Victory
Model Number :	HC-276,C-22,C-4,B2,B3,N
Certification :	CE,ROHS,ISO 9001
Price :	10 - 99 kilograms $35.00
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	300 tons per month
Delivery Time :	5-21 days

Add to Cart

Product Details
Company Profile

Monel 400 C276 C4 C22 16mm Pure Nickel Alloy Inconel 601 625 718 Tube

Hastelloy is a nickel-based corrosion-resistant alloy, which is mainly divided into two categories: nickel-chromium alloy and nickel-chromium-molybdenum alloy. Hastelloy has good corrosion resistance and thermal stability, and is mostly used in aviation, chemical fields, etc.

Hastelloy is composed of elements such as Ni, Cr, Mo, Fe, Si, etc. It is Ni-Mo series, Ni-Cr-Mo series and Ni-Si series corrosion-resistant and heat-resistant alloys in nickel-based alloys. Its density 9.2g/cm, melting point 1330-1380ºC, magneti permeability≤1.001(ºC, RT).

Hastelloy grades: Hastelloy C276, Hastelloy C22, Hastelloy C-2000, Hastelloy C-4, Hastelloy C, Hastelloy B, Hastelloy B-2, Hastelloy B-3, Hastelloy X, Hastelloy G-30, Hastelloy G-35, etc.

UNS N10276, UNS N06022, UNS N06200, UNS N10665, UNS N10675, UNS N06030, UNS N06002, etc. Hastelloy seamless pipes, steel plates, round bars, forgings, flanges, H-rings, welded pipes, steel strips, straight bars, wires and supporting welding consumables, processed parts, etc.

item	HC-276	C-22	C-4	B2	B3	N
C	≤0.01	≤0.015	≤0.015	≤0.02	≤0.01	0.04-0.08
Mn	≤1	≤0.5	≤1	≤1	≤3	≤1
Fe	4-7	2-6	≤3	≤2	≤1.5	≤5
P	≤0.04	≤0.02	≤0.04	≤0.04	--	≤0.015
S	≤0.03	≤0.02	≤0.03	≤0.03	--	≤0.02
Si	≤0.08	≤0.08	≤0.08	≤0.1	≤0.1	≤1
Ni	rest	rest	rest	rest	≤65	rest
Co	≤2.5	≤2.5	≤2	≤1	≤3	≤0.2
Ti+Cu	--	--	≤0.7	--	≤0.4	≤0.35
Al+Ti	--	--	--	--	≤0.5	≤0.5
Cr	14.5-16.5	20-22.5	14-18	≤1	≤1.5	6-8
Mo	15-17	12.5-14.5	14-17	26-30	≤28.5	15-18
B	--	--	--	--	--	≤0.01
W	3-4.5	2.5-3.5	--	--	≤3	≤0.5
V	≤0.35	≤0.35	--	0.2-0.4	--	≤0.5

Hastelloy	Density g/cm3	Melting point ℃	Elongation A5 %	Tensile Strength Rm N/mm2	Yield Strength RP0.2N/mm2
C-276	8.9	1325-1370℃	62	758	363
C-22	8.9	1325-1370 ℃	40	690	283
C-2000	8.5	1399℃ 2550°F	45	690	283
B-2	9.2	1330-1380℃	40	745	325
B-3	9.22	1370-1418℃	40	760	350
G-30	8.22	1399℃ 2550°F	62	524	200
X	8.3	1260-1355℃	30	690	/
C-4	8.64	399°C 2550°F	40	690	280
G-35	8.22	1370-1400℃	/	/	/
C	8.94	1330-1380 ℃	40	690	310

Monel 400 C276 C4 C22 16mm Pure Nickel Alloy Inconel 601 625 718 Tube

Hastelloy alloy tubes are widely used in various fields due to their excellent corrosion resistance, high temperature strength, and good fabricability. The application areas of Hastelloy alloy tubes include but are not limited to the following:

1. Chemical industry: Hastelloy alloy tubes can be used for the production and transportation of strong acids, alkalis, and other corrosive media, as well as in chemical processing equipment such as reactors, heat exchangers, and evaporators.
2. Aerospace industry: Due to the excellent high temperature performance and corrosion resistance of Hastelloy alloy, it is widely used in aerospace applications such as jet engines and rocket components.
3. Marine engineering: Hastelloy alloy tubes have excellent corrosion resistance to seawater, so they are widely used in offshore oil platforms, seawater desalination, and shipbuilding.
4. Power generation industry: Hastelloy alloy tubes can be used in power generation equipment such as boilers, heat exchangers, and condensers due to their high temperature strength and corrosion resistance.
5. Pharmaceutical industry: Hastelloy alloy tubes have good biocompatibility and can be used in pharmaceutical production equipment and clean rooms.
In summary, Hastelloy alloy tubes have a wide range of applications in various fields such as chemical, aerospace, marine, power generation, and pharmaceutical industries due to their excellent corrosion resistance, high temperature strength, and good fabricability.

Monel 400 C276 C4 C22 16mm Pure Nickel Alloy Inconel 601 625 718 Tube
