Introduction:

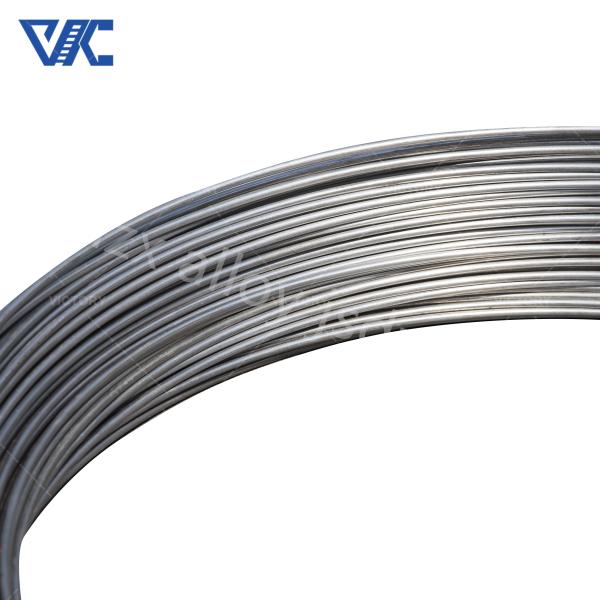

Monel K500 wire is an alloy material widely used in pump and valve
manufacturing. As a nickel-copper alloy, Monel K500 wire has
excellent performance and characteristics, so it is widely used in
the manufacture and application of pumps and valves.
First, Monel K500 wire has excellent corrosion resistance. In the
working environment of pumps and valves, they are often exposed to
various corrosive media, such as acids, alkalis, salt water, etc.
Monel K500 wire can resist the erosion of these corrosive media and
is not prone to corrosion, oxidation or sulfurization reactions,
maintaining its stable performance and extending its service life.
It has high corrosion resistance to corrosive media such as
seawater, chemical solutions and strong acids and alkalis, making
it an ideal choice in pump and valve manufacturing.
Secondly, Monel K500 wire has excellent mechanical properties. It
has high strength and excellent plasticity, and can withstand the
stress and pressure of pumps and valves during work. This makes it
an ideal material for manufacturing high-performance pumps and
valves, capable of maintaining its stable performance under high
pressure, high temperature and high-speed flow conditions, ensuring
the reliability and safety of pumps and valves.
In addition, Monel K500 wire also has good sealing properties. In
pumps and valves, sealing is critical to ensure the control and
transfer of fluids. Monel K500 wire can achieve good cooperation
with the sealing surface through appropriate processing and
manufacturing processes, provide reliable sealing effect and avoid
leakage and leakage problems.
Parameter:
Chemical composition:
Nickel (Ni): about 63%
Copper (Cu): about 29.5%
Aluminum (Al): about 2.7%
Titanium (Ti): about 0.6%
Iron (Fe): about 2%
Manganese (Mn): about 1.5%
Silicon (Si): about 0.5%
Carbon (C): up to 0.25%
Physical properties:
Density: about 8.05g/cubic centimeter
Melting point: about 1288-1343 degrees Celsius
Thermal Conductivity: Approximately 17.2 Watts/meter-Kelvin
Linear expansion coefficient: approximately 13.9 x 10^-6 degrees
Celsius^-1 (room temperature to 100 degrees Celsius)
Mechanical behavior:
Yield Strength (Tensile Strength): Minimum approximately 790 MPa
(80,000 psi)
Tensile Strength: Minimum approximately 1100 MPa (110,000 psi)
Elongation: minimum value is about 20%
Item | Ni | Cu | Al | Ti | Fe | Mn | S | C | Si |
Monel K500 | ≥63 | 27-33 | 2.3-3.15 | 0.35-0.85 | ≤2 | ≤1.5 | ≤0.01 | ≤0.25 | ≤0.5 |
Item | Density | Melting point | Tensile Strength | Yield Strength | Elongation |
Monel K500 | 8.05 g/cm3 | 1288-1343℃ | 1100 | 790 | 20% |
Monel K500 | Bar/Rod | Forging | Pipe | Sheet/Strip | Welding Wire |
Standard | ASTM B864 | AMS4676 | ASTM B865 | ASTM B564 | ErNiCu-7 |
Advantage:
Monel K500 alloy wire is a high-strength, corrosion-resistant alloy
material composed of elements such as nickel and copper. It is
widely used in the field of pump and valve manufacturing mainly due
to the following characteristics and advantages:
- Corrosion resistance: Monel K500 alloy wire has excellent corrosion
resistance and can resist various corrosive media, including acid,
alkaline and salt water. This makes it an ideal material for
manufacturing equipment such as pumps and valves, which can operate
stably for long periods of time in corrosive environments.
- High Strength Performance: Monel K500 alloy wire has excellent high
strength performance and can withstand working conditions under
high pressure and temperature. This makes it suitable for
manufacturing critical components such as pumps and valves that
need to withstand high pressure and mechanical loads.
- Anti-wear properties: Monel K500 alloy wire has good anti-wear
properties and can maintain stable performance in friction and wear
environments. This allows it to provide good wear resistance in
some applications in pump and valve manufacturing, such as seals
and valve seats in fluid transmission.
- High temperature resistance: Monel K500 alloy wire can maintain
stable performance in high temperature environments and is not
prone to deformation and rupture. This makes it important in the
manufacture of pumps and valves under high-temperature conditions,
such as high-temperature fluid transportation and heat treatment.
Application:
In the field of pump and valve manufacturing, specific applications
of Monel K500 alloy wire include but are not limited to the
following aspects:
- Pump body and pump blades: used to manufacture key components of
the pump, such as pump body, blades and impellers.
- Valve seat ring and valve core: used to manufacture valve sealing
components, such as seat rings, valve cores and valve balls.
- Fluid transmission pipeline: used to manufacture fluid transmission
pipelines with corrosion resistance and high strength requirements,
such as chemical pipelines and marine engineering pipelines.
contact us
email:victory@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Q&A:
Q: How is the quality of Monel K500 wire ensured?
A: The quality of Monel K500 wire is ensured through strict quality
control measures, including material testing, dimensional checks,
and adherence to industry standards.
Q: What are the benefits of using high-quality Monel K500 wire?
A: Using high-quality Monel K500 wire provides benefits such as
reliable performance, extended service life, and resistance to
corrosion and fatigue. It ensures the integrity of critical
components in demanding applications, minimizing the risk of
failures and downtime.
