Product Description:

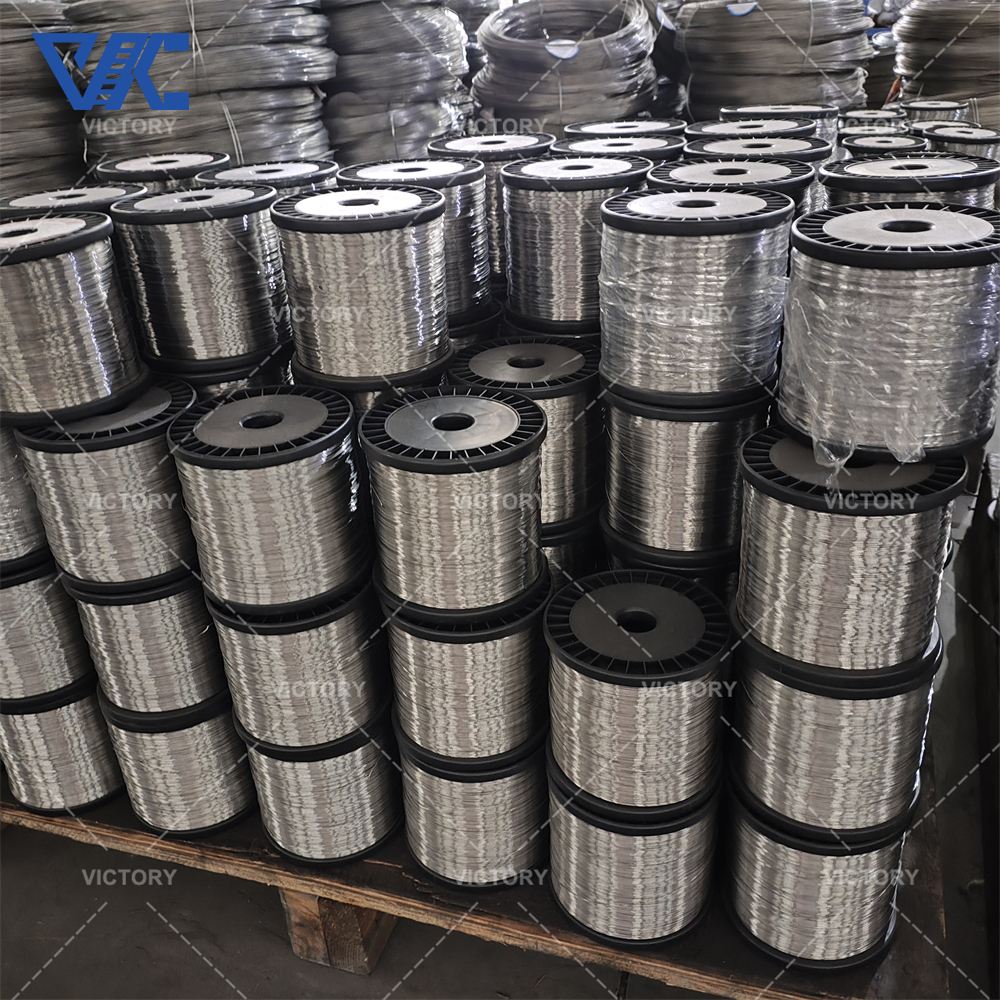

Inconel 600 Wire
Inconel 600 alloy wire is an important high-performance alloy
material in the aerospace field. The alloy is composed of nickel,
chromium and other alloying elements and has excellent
high-temperature strength, corrosion resistance and heat
resistance.
In aerospace applications, the importance of Inconel 600 alloy wire
is self-evident. It is widely used to manufacture key components
such as aerospace engine components, jet propulsion systems,
combustion chambers, thermal protection systems and spacecraft
structures.
Characteristic:
- High temperature strength: Inconel 600 alloy wire has excellent
high temperature strength and can maintain its mechanical
properties in high temperature environments.
- Corrosion resistance: It shows good corrosion resistance and can
resist a variety of corrosive media, including acidic and alkaline
solutions, chloride ions and oxidizing media, etc.
- Oxidation resistance: Inconel 600 alloy wire has good oxidation
resistance at high temperatures and can resist oxidation and hot
corrosion.
- Heat resistance: It can withstand long-term use in high temperature
environments and has good heat resistance and thermal stability.
- Low Magnetism: Inconel 600 alloy wire has low magnetism and is
suitable for applications that are sensitive to magnetic
requirements.
Advantage:
- Lightweight design: Inconel 600 alloy wire has a lower density,
which can achieve lightweight design in the aerospace field and
improve the fuel efficiency and performance of aircraft.
- High-temperature environment applications: Its high-temperature
strength and heat-resistant properties make it very suitable for
applications in high-temperature environments such as engine
components, jet propulsion systems, and combustion chambers.
- Corrosion resistance: The excellent corrosion resistance of Inconel
600 alloy wire enables it to resist corrosive media in the
aerospace field and protect the integrity and reliability of key
components.
- Long Service Life: Due to its resistance to oxidation and
corrosion, Inconel 600 alloy wire has a long service life in
aerospace applications.
Specific applications:
When it comes to more applications in the aerospace field, here are
some specific aspects:
- Engine components: Inconel 600 alloy wire is widely used in key
components of aerospace engines, such as turbine blades, combustion
chambers and nozzles. These components need to have excellent heat
resistance and corrosion resistance in high-temperature and
high-pressure working environments. Inconel 600 alloy wire is able
to withstand these extreme conditions and maintain its mechanical
properties and dimensional stability.
- Jet propulsion systems: Applications of Inconel 600 alloy wire in
jet propulsion systems include gas turbines and jet nozzles. These
components need to withstand the erosion and corrosion of
high-temperature and high-pressure airflow, while possessing high
strength and fatigue resistance. Inconel 600 alloy wire is able to
meet these requirements and provide reliable performance in jet
propulsion systems.
- Combustion chamber: The combustion chamber is the area in an aero
engine that is subject to high temperature and high pressure
combustion gases. Inconel 600 alloy wire is used in combustion
chamber linings and combustion chamber wall materials to protect
the structure from erosion and corrosion from high-temperature
combustion gases.
- Thermal protection systems: Inconel 600 alloy wire is used to
manufacture thermal protection systems in the aerospace field.
These systems are designed to protect the aircraft's structure from
the effects of high-temperature environments. The heat-resistant
properties of Inconel 600 alloy wire make it an ideal choice for
thermal protection materials.
- Spacecraft structures: Inconel 600 alloy wire can also be used to
manufacture structural components of spacecraft, such as support
structures, connectors and frames. These components need to be
high-strength, lightweight and corrosion-resistant to ensure the
reliability and safety of spacecraft in extreme environments.
In general, Inconel 600 alloy wire is widely used in the aerospace
field and can meet the stringent material requirements of the
aerospace industry due to its high-temperature strength, corrosion
resistance, heat resistance and mechanical properties. Inconel 600
alloy wire provides reliable performance and advantages in engine
components, jet propulsion systems, combustion chambers, thermal
protection systems and spacecraft structures.
Parameter:
Chemical composition: Contains about 72% nickel and 14-17%
chromium, with a small amount of iron, copper, carbon, titanium and
other alloying elements.
Density: approximately 8.4 g/cm3.
Melting point: approximately 1,371 degrees Celsius.
Tensile strength: typical value is 550 MPa.
Yield strength: typical value is 240 MPa.
Elongation: typical value is 30%.
| Item | C | Mn | Fe | P | S | Si | Cu | Ni | Co | Al | Ti | Cr | Nb+Ta | Mo | B |
| Inconel 600 | ≤0.15 | ≤1 | 6-10 | ≤0.015 | ≤0.015 | ≤0.5 | ≤0.5 | ≥72 | -- | -- | -- | 14-17 | -- | -- | -- |
| Element | Percent |
| Nickel (plus Cobalt) (Min) | 72 |
| Chromium | 14-17 |
| Iron | 6-10 |
| Carbon (Max) | .15 |
| Manganese (Max) | 1 |
| Sulfur (Max) | .015 |
| Silicon (Max) | .5 |
| Copper (Max) | .5 |
contact us
email:victory@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
FAQ:
Q1: What is INCONEL 600 wire?
A1: INCONEL 600 wire is a type of nickel-based alloy wire composed
primarily of nickel, chromium, and iron. It is known for its
excellent resistance to corrosion and heat, making it suitable for
demanding applications in various industries.
Q2: What are the key features and benefits of INCONEL 600 wire?
A2: INCONEL 600 wire offers exceptional corrosion resistance
against a wide range of corrosive environments, including acids,
alkaline solutions, and high-temperature oxidizing atmospheres. It
exhibits high strength, good workability, and retains its
mechanical properties at elevated temperatures. Additionally, it
has excellent resistance to chloride-ion stress-corrosion cracking.
