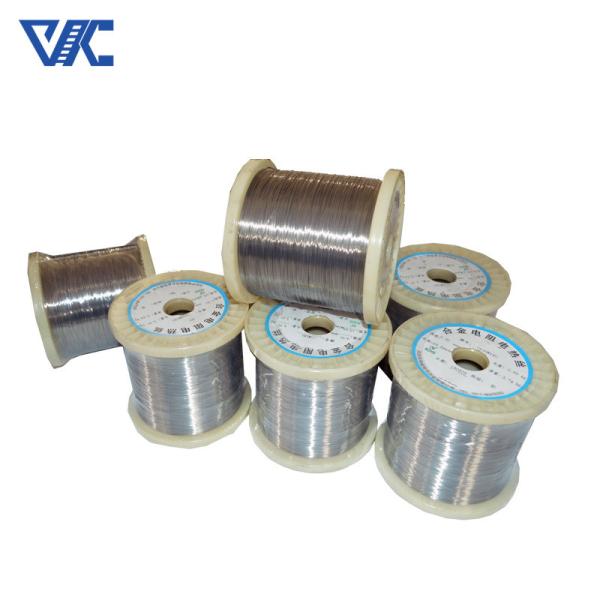

    CuNi Alloy Constantan Copper Nickel Resistance Wire Cuni44

    Ask Lasest Price
    Brand Name : Victory
    Model Number : CuNi23、CuNi30、CuNi34、6J8、6J11
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 300 tons per month
    Delivery Time : 5-21 days
    Certification : CE,ROHS,ISO 9001
    • Product Details
    • Company Profile

    CuNi Alloy Constantan Copper Nickel Resistance Wire Cuni44

    CuNi alloy wire is an alloy material composed of copper (Cu) and nickel (Ni), which has good electrical conductivity and corrosion resistance. It is widely used in electrical, electronic and thermal control fields, and common grades include CuNi23, CuNi30, CuNi34, 6J8 and 6J11. Each grade has different chemical compositions and properties to suit different application needs. CuNi alloy wires perform well in high temperature and corrosive environments and can be used in various high temperature heating and measurement control applications such as electric heating devices, electric heating wires, ovens, hot air fans, drying equipment, thermocouples and temperature sensors.

    CuNi alloy wire has excellent corrosion resistance, high temperature stability and reliability. They can operate stably in high temperature and corrosive environments for a long time and are suitable for various industrial and commercial fields. Different grades of CuNi alloy wires have different resistivities, current loads and mechanical strengths to meet the requirements of specific applications. Whether used in precision measurement and control applications such as electric heating devices, ovens, hot air blowers, or thermocouples and temperature sensors, CuNi alloy wire is a reliable and efficient choice.



    Properties/ Material
    Resistivity (200C μΩ.m)
    Max. Working Temperature(C)
    Tensile Strength (Mpa)
    Melting Point
    Density(g/cm3)
    NC003(CuNi1)
    0.03
    200
    210
    1085
    8.9
    NC005(CuNi2)
    0.05
    200
    220
    1090
    8.9
    NC010(CuNi6)
    0.1
    220
    250
    1095
    8.9
    NC012(CuNi8)
    0.12
    250
    270
    1097
    8.9
    NC015(CuNi10)
    0.15
    250
    290
    1100
    8.9
    NC020(CuNi14)
    0.2
    300
    310
    1115
    8.9
    NC025(CuNi19)
    0.25
    300
    340
    1135
    8.9
    NC030(CuNi23)
    0.3
    300
    350
    1150
    8.9
    NC035(CuNi30)
    0.35
    350
    400
    1170
    8.9
    NC040(CuNi34)
    0.4
    350
    400
    1180
    8.9
    NC050(CuNi44)
    0.5
    400
    420
    1200
    8.9

    ShapeSize(mm)
    Wire0.08-7.5
    Bar8.0-50
    Ribbon(0.05-0.35)*(0.5-6.0)
    Strip(0.5-2.5)*(5-180)

    CuNi Alloy Constantan Copper Nickel Resistance Wire Cuni44CuNi Alloy Constantan Copper Nickel Resistance Wire Cuni44
