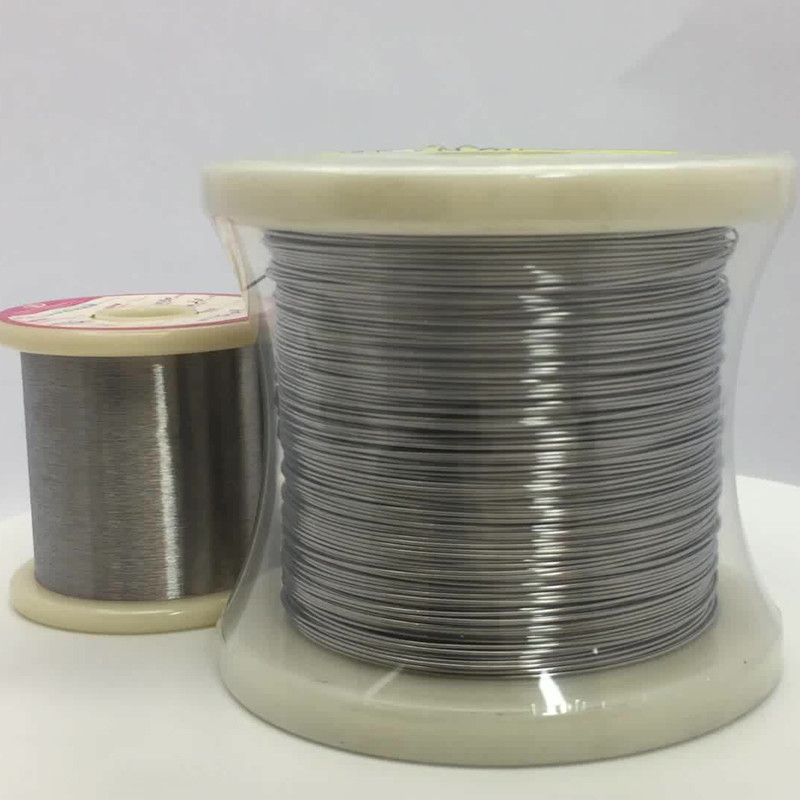

Best Selling Copper Nickel Alloy Wire Cuni6 Cuni Wires Heat Resistance Alloy Cuni6 Copper Wire

Ask Lasest Price
Brand Name :	Victory
Model Number :	CuNi23、CuNi30、CuNi34、6J8、6J11
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	300 tons per month
Delivery Time :	5-21 days
Certification :	CE,ROHS,ISO 9001

Add to Cart

Product Details
Company Profile

Best Selling Copper Nickel Alloy Wire Cuni6 Cuni Wires Heat Resistance Alloy Cuni6 Copper Wire

CuNi40 alloy resistance electric copper nickel heating wire is a highly useful product that is widely used in various applications. This wire is made from a special alloy that has moderate resistivity and low temperature coefficient of resistance. This means that the wire has a flat resistance/temperature curve over a wider range than other similar alloys such as "manganins". Additionally, the wire also has better corrosion resistance than other alloys.

The uses of Constantan wire are mainly restricted to AC circuits. However, it is also commonly used as the negative element of the type J thermocouple, with Iron being the positive. Type J thermocouples are used in heat treating applications. Furthermore, Constantan wire is also used as the negative element of the type T thermocouple, with OFHC Copper being the positive. Type T thermocouples are used at cryogenic temperatures.

Product Description

Cu-Ni Alloy: CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi44
NC003, NC005, NC010, NC012, NC015, NC020, NC025, NC030, NC035, NC040, NC050
We can supply type of : wire, ribbon, strip, customized furnace spring wire/strip
Cold Drawing Wire: DIA 0.03m-8.0mm
Hot Rolled Rod / Bar: DIA 8.0mm-50.0mm
Cold Rolled Ribbon/Strip: (0.05mm-0.35mm) *(0.5-6.0)mm
Hot Rolled Strip: (0.5mm-2.5mm) *(5-180.0)mm

Properties/ Material	Resistivity (200C μΩ.m)	Max. Working Temperature(C)	Tensile Strength (Mpa)	Melting Point	Density(g/cm3)
NC003(CuNi1)	0.03	200	210	1085	8.9
NC005(CuNi2)	0.05	200	220	1090	8.9
NC010(CuNi6)	0.1	220	250	1095	8.9
NC012(CuNi8)	0.12	250	270	1097	8.9
NC015(CuNi10)	0.15	250	290	1100	8.9
NC020(CuNi14)	0.2	300	310	1115	8.9
NC025(CuNi19)	0.25	300	340	1135	8.9
NC030(CuNi23)	0.3	300	350	1150	8.9
NC035(CuNi30)	0.35	350	400	1170	8.9
NC040(CuNi34)	0.4	350	400	1180	8.9
NC050(CuNi44)	0.5	400	420	1200	8.9

Shape	Size(mm)
Wire	0.08-7.5
Bar	8.0-50
Ribbon	(0.05-0.35)*(0.5-6.0)
Strip	(0.5-2.5)*(5-180)

Best Selling Copper Nickel Alloy Wire Cuni6 Cuni Wires Heat Resistance Alloy Cuni6 Copper Wire
