Lowest Price Nichrome Alloy Cr20Ni80 Ni80 Wire Cr15Ni60 Electric Resistance Wire

Ask Lasest Price
Brand Name :	Victory
Model Number :	Cr20Ni80
Certification :	CE
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	300 tons per month
Delivery Time :	7-20 days

Add to Cart

Product Details
Company Profile

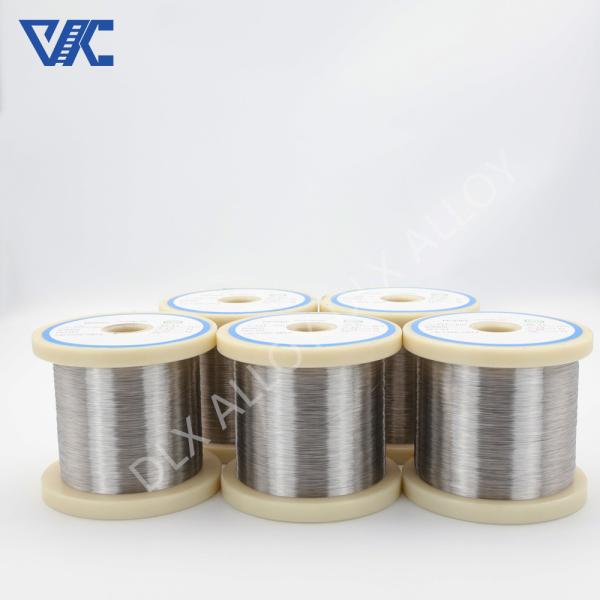

Lowest Price Nichrome Alloy Cr20Ni80 Ni80 Wire Cr15Ni60 Electric Resistance Wire

Nickel Chrome Resistance Alloy Wire Cr20Ni80,NiCr 8020 Nichrome Wire

NiCr Series

Nichrome wire, specifically the Cr20Ni80 alloy, is highly valued for its unique properties. When heated, it exhibits a minimum electrical resistance, making it ideal for use in electrothermal equipment. Additionally, it possesses elevated temperature strength and high ductility, allowing for various forms of machining such as chiseling, welding, stamping, and drawing. The alloy also holds its shape well, adding to its durability and reliability.

Despite its high price, the performance of Nichrome wire justifies the cost. The Cr20Ni80 and Cr15Ni60 alloys are the most popular brands due to their exceptional properties. H20N80 comprises 20% chromium and 80% nickel, resulting in a resistivity of 650 Ohms/cmf and a melting temperature of 1200°C.

Overall, Nichrome wire is a versatile and reliable material that is widely used in the electrical industry. Its unique properties make it an excellent choice for heating applications and other forms of electrothermal equipment. Despite its cost, the durability and reliability of this alloy make it a worthwhile investment.

Size dimension range:

Wire: 0.01-10mm

Ribbons: 0.05*0.2-2.0*6.0mm

Strip: 0.05*5.0-5.0*250mm

NiCr series: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30

Performance material		Cr10Ni90	Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Composición	Ni	90	Rest	Rest	55.0～61.0	34.0～37.0	30.0～34.0
	Cr	10	20.0～23.0	28.0～31.0	15.0～18.0	18.0～21.0	18.0～21.0
	Fe	－	≤1.0	≤1.0	Rest	Rest	Rest
Temperatura máxima℃		1300	1200	1250	1150	1100	1100
Punto de fusion ℃		1400	1400	1380	1390	1390	1390
Densidad g/cm3		8.7	8.4	8.1	8.2	7.9	7.9
Resistividad μΩ·m,20℃		0.76±0.05	1.09±0.05	1.18±0.05	1.12±0.05	1.00±0.05	1.04±0.05
Alargamiento a la ruptura		≥20	≥20	≥20	≥20	≥20	≥20
Calor especifico J/g.℃		－	0.44	0.461	0.494	0.5	0.5
Conductividad térmica KJ/m.h℃		－	60.3	45.2	45.2	43.8	43.8
Coeficiente de expansión de líneas a×10-6/(20～1000℃)		－	18	17	17	19	19
Estructura micrográfica		－	Austenite	Austenite	Austenite	Austenite	Austenite
Propiedades magnéticas		－	Nonmagnetic	Nonmagnetic	Nonmagnetic	Weak magnetic	Weak magnetic

Form	Specification
Wire	Diameter=0.025mm~8mm
Flat wire	Width=0.40~6.0mm	Thick=0.03~0.50mm
Strip	width=8~250mm	Thick=0.05~3.0mm
Bar	Diameter=8~100mm	Long=50~1000

Lowest Price Nichrome Alloy Cr20Ni80 Ni80 Wire Cr15Ni60 Electric Resistance Wire

Shape	Size(mm)
Wire	0.05-7.5
Rod	8-50
Ribbon	(0.05-0.35)*(0.5-6.0)
Strip	(0.5-2.5)*(5-40)
