High Quality Resistance Alloy Nichrome 80 20 Nicr 60/15 Nichrome Wire

Ask Lasest Price
Brand Name :	Victory
Model Number :	Cr20Ni80
Certification :	CE
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	300 tons per month
Delivery Time :	7-20 days

Add to Cart

Product Details
Company Profile

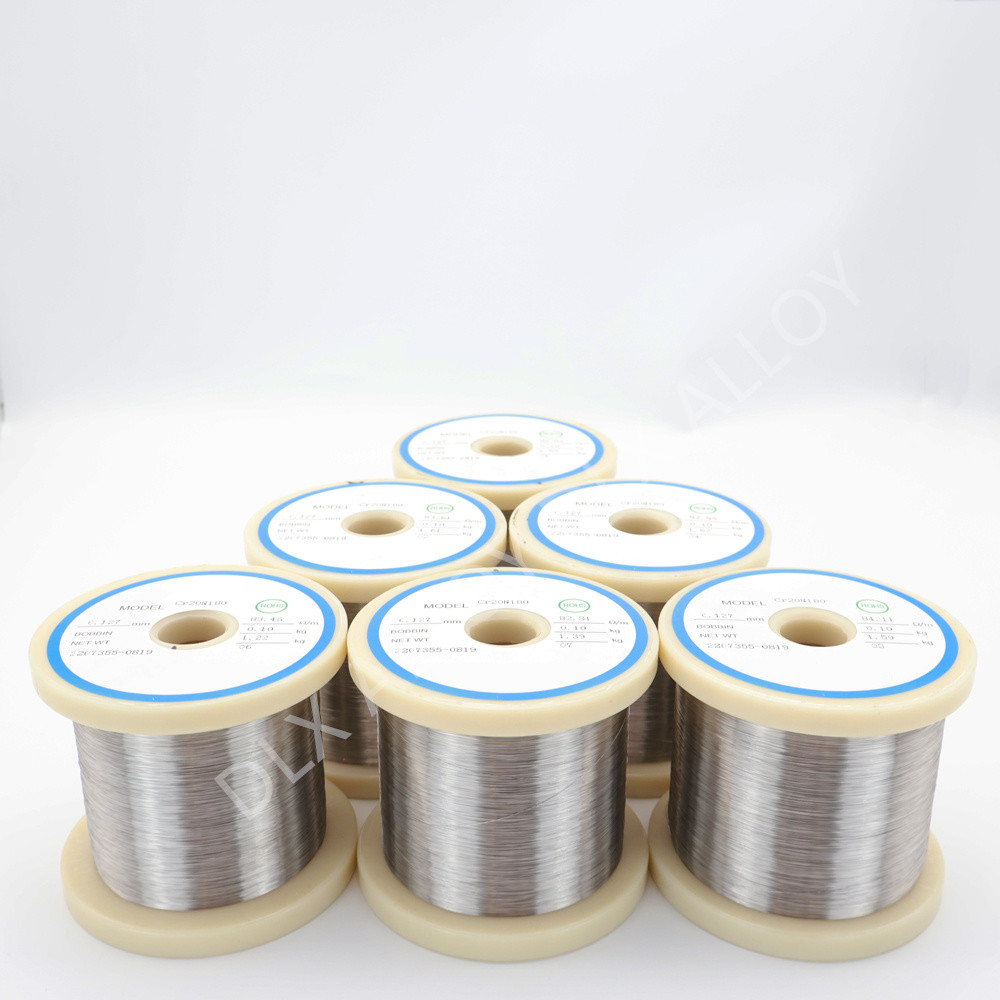

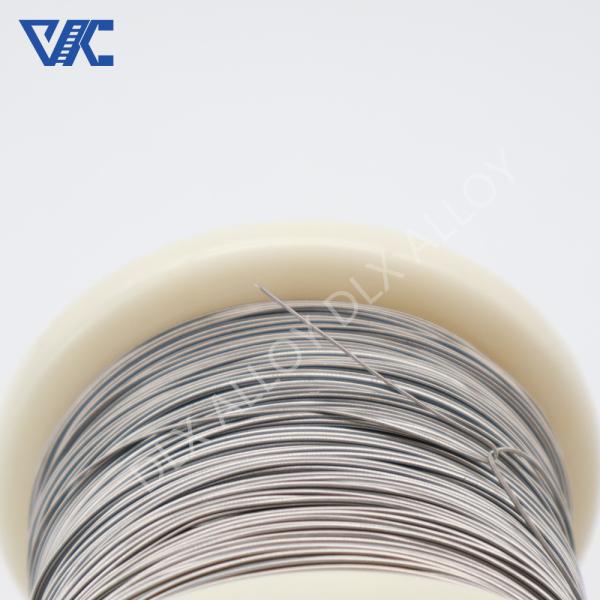

High Quality Resistance Alloy Nichrome 80 20 Nicr 60/15 Nichrome Wire

Cr20ni80 Nickel Chrome Alloy Wire Micc Nickel Chrome Resistance Alloy Wire Cr20Ni80

NiCr Series

Nichrome wire is a non-magnetic alloy consisting mainly of nickel, chromium, and iron. It has high resistivity and good oxidation resistance, as well as good ductility and weldability. Due to these properties, nichrome wire and strips are commonly used to produce heating elements in electric furnaces, thermal devices, heat guns, industrial hair dryers, water heating systems, high-value electrical resistors, heating cords, and cables.

Size dimension range:

Wire: 0.01-10mm

Ribbons: 0.05*0.2-2.0*6.0mm

Strip: 0.05*5.0-5.0*250mm

NiCr series: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30

Performance material		Cr10Ni90	Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Composición	Ni	90	Rest	Rest	55.0～61.0	34.0～37.0	30.0～34.0
	Cr	10	20.0～23.0	28.0～31.0	15.0～18.0	18.0～21.0	18.0～21.0
	Fe	－	≤1.0	≤1.0	Rest	Rest	Rest
Temperatura máxima℃		1300	1200	1250	1150	1100	1100
Punto de fusion ℃		1400	1400	1380	1390	1390	1390
Densidad g/cm3		8.7	8.4	8.1	8.2	7.9	7.9
Resistividad μΩ·m,20℃		0.76±0.05	1.09±0.05	1.18±0.05	1.12±0.05	1.00±0.05	1.04±0.05
Alargamiento a la ruptura		≥20	≥20	≥20	≥20	≥20	≥20
Calor especifico J/g.℃		－	0.44	0.461	0.494	0.5	0.5
Conductividad térmica KJ/m.h℃		－	60.3	45.2	45.2	43.8	43.8
Coeficiente de expansión de líneas a×10-6/(20～1000℃)		－	18	17	17	19	19
Estructura micrográfica		－	Austenite	Austenite	Austenite	Austenite	Austenite
Propiedades magnéticas		－	Nonmagnetic	Nonmagnetic	Nonmagnetic	Weak magnetic	Weak magnetic

Form	Specification
Wire	Diameter=0.025mm~8mm
Flat wire	Width=0.40~6.0mm	Thick=0.03~0.50mm
Strip	width=8~250mm	Thick=0.05~3.0mm
Bar	Diameter=8~100mm	Long=50~1000

nicr8020 characteristic
Chemical Content %: 80.00 Nickel, 20.00 Chrome
Max continuous service temperature: 1200ºC
Resisivity: 1.09 mm2Ω /m
Density: 8.4g/cm3
Thermal conductivity: 60.3kj/mhc
Coefficient of thermal expansion: 18*10-6/c
Melting point: 1400ºC
Elongation: Min 20%
Austenite:Nonmagnetic

High Quality Resistance Alloy Nichrome 80 20 Nicr 60/15 Nichrome Wire
