Electric Ni80 Nickel Chromium Resistance Alloy Nichrome 2080 Heating Wire For Furnace

Ask Lasest Price
Brand Name :	Victory
Model Number :	Cr20Ni80
Certification :	CE
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	300 tons per month
Delivery Time :	7-20 days

Add to Cart

Product Details
Company Profile

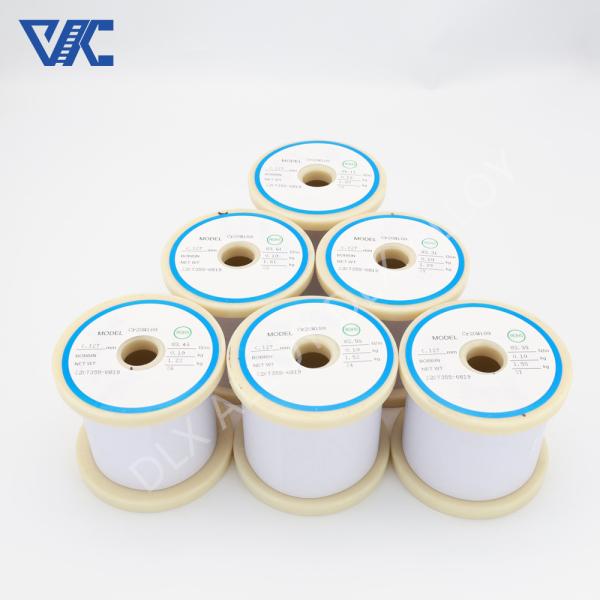

Electric Ni80 Nickel Chromium Resistance Alloy Nichrome 2080 Heating Wire For Furnace

NiCr Series

Nichrome wire is a type of alloy that is composed primarily of nickel, chromium, and iron. One of the key properties of nichrome wire is its high resistivity, which means that it is able to resist the flow of electrical current. Another important feature of nichrome wire is its good oxidation resistance, which allows it to withstand high temperatures and prevents it from corroding over time.

In addition to its high resistivity and good oxidation resistance, nichrome wire also has excellent ductility after use and weldability. This means that it can be easily shaped and formed into various shapes and sizes, and can be easily welded together to form larger structures.

Given these properties, nichrome wire is widely used in a variety of applications. It is commonly used to manufacture heating elements for laboratory and industrial electric furnaces, as well as various electrical devices that require thermal action, such as heat guns and industrial hair dryers. Nichrome wire is also used in water heating systems, high-value electrical resistors, heating cords, and cables.

Overall, nichrome wire is a versatile and reliable material that is essential in many industries. Its unique combination of properties makes it an ideal choice for applications that require high-temperature resistance, electrical resistance, and ductility.

Size dimension range:

Wire: 0.01-10mm

Ribbons: 0.05*0.2-2.0*6.0mm

Strip: 0.05*5.0-5.0*250mm

NiCr series: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30

Performance material		Cr10Ni90	Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Composición	Ni	90	Rest	Rest	55.0～61.0	34.0～37.0	30.0～34.0
	Cr	10	20.0～23.0	28.0～31.0	15.0～18.0	18.0～21.0	18.0～21.0
	Fe	－	≤1.0	≤1.0	Rest	Rest	Rest
Temperatura máxima℃		1300	1200	1250	1150	1100	1100
Punto de fusion ℃		1400	1400	1380	1390	1390	1390
Densidad g/cm3		8.7	8.4	8.1	8.2	7.9	7.9
Resistividad μΩ·m,20℃		0.76±0.05	1.09±0.05	1.18±0.05	1.12±0.05	1.00±0.05	1.04±0.05
Alargamiento a la ruptura		≥20	≥20	≥20	≥20	≥20	≥20
Calor especifico J/g.℃		－	0.44	0.461	0.494	0.5	0.5
Conductividad térmica KJ/m.h℃		－	60.3	45.2	45.2	43.8	43.8
Coeficiente de expansión de líneas a×10-6/(20～1000℃)		－	18	17	17	19	19
Estructura micrográfica		－	Austenite	Austenite	Austenite	Austenite	Austenite
Propiedades magnéticas		－	Nonmagnetic	Nonmagnetic	Nonmagnetic	Weak magnetic	Weak magnetic

Form	Specification
Wire	Diameter=0.025mm~8mm
Flat wire	Width=0.40~6.0mm	Thick=0.03~0.50mm
Strip	width=8~250mm	Thick=0.05~3.0mm
Bar	Diameter=8~100mm	Long=50~1000
