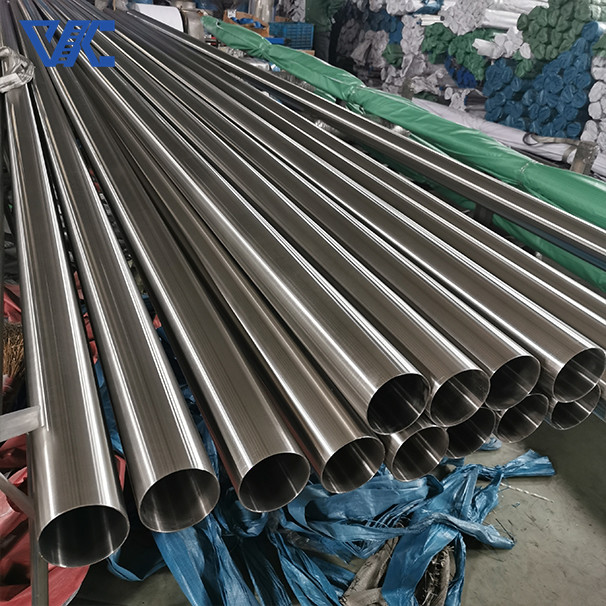

Bright surface UNS N06617 Nickel Alloy 617 Inconel 617 Seamless /
Welded Pipe Tube Supplier
Inconel 617 is a nickel-based superalloy that is known for its
excellent high-temperature strength, corrosion resistance, and
oxidation resistance. Some key features of Inconel 617 include:
Composition:
Primarily composed of nickel, chromium, and cobalt, with smaller
amounts of molybdenum, iron, and other elements.
Typical composition: Ni 44-46%, Cr 20-24%, Co 10-15%, Mo 8-10%, Fe
≤3%, Al ≤1.5%, Ti ≤0.6%.
High-Temperature Properties:
Maintains excellent mechanical properties and corrosion resistance
up to temperatures of around 1100°C (2012°F).
Exhibits outstanding creep and stress-rupture resistance at
elevated temperatures.
Corrosion and Oxidation Resistance:
Highly resistant to corrosion in various environments, including
oxidizing, reducing, and high-sulfur atmospheres.
Forms a protective oxide layer that provides excellent resistance
to high-temperature oxidation.
What is the application of Inconel 617 pipe?
1. Petrochemical Industry:
Inconel 617 pipes are used in refinery and petrochemical plant
equipment, such as:
Heaters
Furnaces
Heat exchangers
Reactors
The pipes are able to withstand the harsh, high-temperature, and
corrosive environments found in these processes.
2. Power Generation:
Inconel 617 pipes are used in the construction of:
Boilers
Superheaters
Reheaters
Turbine components
The pipes can operate reliably at the high temperatures and
pressures encountered in power generation equipment.
3. Aerospace and Gas Turbines:
Inconel 617 pipes are employed in the hot sections of gas turbine
engines, such as:
Combustion chambers
Transition ducts
Exhaust systems
The material's high-temperature strength and oxidation resistance
make it suitable for these demanding applications.
4. Waste-to-Energy Plants:
Inconel 617 pipes are used in the furnaces and heat recovery
systems of waste-to-energy facilities.
The pipes can withstand the corrosive combustion byproducts and
high temperatures in these environments.
5. Specialty Applications:
Inconel 617 pipes may also be used in other high-temperature,
corrosive applications, such as:
Chemical processing equipment
Flue gas desulfurization systems
Thermal treatment furnaces
The combination of Inconel 617's material properties makes it a
valuable choice for piping systems in industries where reliability
and performance at elevated temperatures are critical.
Inconel Alloy Series Composition:
| Item | Inconel 600 | Inconel 601 | Inconel 617 | Inconel 625 | Inconel 690 | Inconel718 | Inconel X750 | Inconel 825 |
| C | ≤0.15 | ≤0.1 | 0.05-0.15 | ≤0.08 | ≤0.05 | ≤0.08 | ≤0.08 | ≤0.05 |
| Mn | ≤1 | ≤1.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤1 | ≤1 |
| Fe | 6-10 | rest | ≤3 | rest | 7-11 | rest | 5-9 | ≥22 |
| P | ≤0.015 | ≤0.02 | ≤0.015 | -- | -- | -- | -- | -- |
| S | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.01 | ≤0.01 | ≤0.03 |
| Si | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.5 |
| Cu | ≤0.5 | ≤1 | -- | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.5 | 1.5-3 |
| Ni | ≥7.2 | 58-63 | ≥44.5 | 50-55 | ≥58 | 50-55 | ≥70 | 38-46 |
| Co | -- | -- | 10-15 | ≤10 | -- | ≤1 | ≤1 | -- |
| Al | -- | 1-1.7 | 0.8-1.5 | ≤0.8 | -- | 0.2-0.8 | 0.4-1 | ≤0.2 |
| Ti | -- | -- | ≤0.6 | ≤1.15 | -- | ≤1.15 | 2.25-2.75 | 0.6-1.2 |
| Cr | 14-17 | 21-25 | 20-24 | 17-21 | 27-31 | 17-21 | 14-17 | 19.5-23.5 |
| Nb+Ta | -- | -- | -- | 4.75-5.5 | -- | 4.75-5.5 | 0.7-1.2 | -- |
| Mo | -- | -- | 8-10 | 2.8-3.3 | -- | 2.8-3.3 | -- | 2.5-3.5 |
| B | -- | -- | ≤0.006 | -- | -- | -- | -- | -- |
Inconel 617 Alloy Parameter:
| Inconel 600 | Tensile strength (Rm N/mm2) | Yield strength (RP0.2N/mm2) | Elongation A5 (%) | Brinell hardness (HB) | Density(g/cm3) | Melting Point (℃) |
| Seamless | 660 | 240 | 35 | --- | 8.36 | 1330~1380°C |
| Welded | 660 | 240 | 35 | --- |
