Introduction:
0Cr23Al5 furnace wire is a high-temperature alloy material commonly
used in applications such as electric furnace heating elements,
thermocouples, and resistance wires. It is composed of elements
such as chromium (Cr) and aluminum (Al), of which the chromium
content accounts for about 23% and the aluminum content accounts
for about 5%. This furnace wire is known for its excellent
antioxidant properties and high temperature resistance.
0Cr23Al5 furnace wire has excellent high temperature resistance and
can operate stably for a long time in high temperature
environments. It has a high melting point (about 1500 degrees
Celsius) and can withstand extremely high operating temperatures.
In addition, the furnace wire has excellent anti-oxidation ability
and can resist oxidation, corrosion and deformation at high
temperatures, extending its service life.
The alloy furnace wire also has a low linear expansion coefficient,
allowing it to maintain good stability during thermal cycling. Its
thermal conductivity is high, which helps to conduct heat quickly
and improve heating efficiency. In addition, 0Cr23Al5 furnace wire
also has high tensile strength and yield strength, and can
withstand mechanical stress in high temperature environments.
Parameter:
Chromium (Cr): approximately 23% by mass
Aluminum (Al): approximately 5% by mass
Other elements: mainly iron (Fe) and impurity elements, such as
manganese (Mn), silicon (Si), etc.
Density: approximately 7.25 g/cm3
Melting point: approximately 1500 degrees Celsius
Thermal Conductivity: Approximately 13-15 Watts/meter Kelvin
(around room temperature)
Linear expansion coefficient: approximately 1
Tensile strength: about 600-800 MPa
Yield strength: about 280-450 MPa
Elongation: approximately 10-25% (at room temperature)
item | value |
Place of Origin | Jiangsu,China |

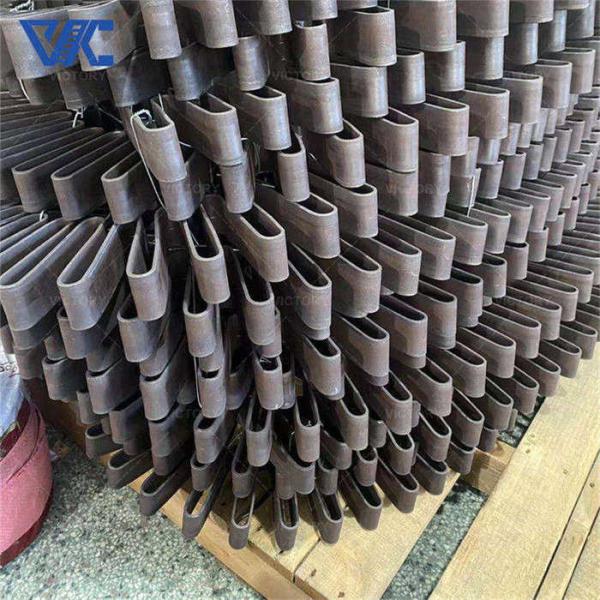

Type | Fe-Cr-Aluminum Ribbon |
Application | Industry Furnace |
Conductor Material | ferro alloy |
Certificate | ISO9001 |
Thermal conductivity: | 15 W/(m.K) (20ºC) |
Executive standard | GB/T1234-2012 |
Dimensions | User's Demand |
Size | 0.56-5mm |
shape | shaped strip |
width | 6-50mm |
Packing | Pallet |
highest temperature | 1400ºC |
melting point | 1520ºC |
Alloy Nomenclature Performance | 1Cr13AL4 | 0Cr25Al5 | 0Cr21AL6 | 0Cr23Al5 | 0Cr21Al4 | 0Cr21Al6Nb | 0Cr27Al7Mo2 |
Main Chemical composition
| Cr | 12.0-15.0 | 23.0-26.0 | 19.0-22.0 | 20.5-23.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 |
Al | 4.0-6.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.3 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 |
Re | opportune | opportune | opportune | opportune | opportune | opportune | opportune |
Fe | Rest | Rest | Rest | Rest | Rest | Rest | Rest |
| | | | | | Nb0.5 | Mo1.8-2.2 |
Max. continuous service temp. of element(°C) | 950 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 |
Resistivity at 20ºC(μΩ·m) | 1.25 | 1.42 | 1.42 | 1.35 | 1.23 | 1.45 | 1.53 |
Density(g/cm3) | 7.4 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 |
Thermal conductivity(KJ/m·h·ºC) | 52.7 | 46.1 | 63.2 | 60.2 | 46.9 | 46.1 | -- |
Coefficient of lines expansion(α×10-6/ºC) | 15.4 | 16 | 14.7 | 15 | 13.5 | 16 | 16 |
Melting point approx.( ºC) | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1520 |
Tensile strength(N/mm2) | 580-680 | 630-780 | 630-780 | 630-780 | 600-700 | 650-800 | 680-830 |
Elongation at rupture(%) | >16 | >12 | >12 | >12 | >12 | >12 | >10 |
Variation of area(%) | 65-75 | 60-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 |
Repeat Bending frequency(F/R) | >5 | >5 | >5 | >5 | >5 | >5 | >5 |
Hardness(H.B.) | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 |
continuous service time(Hours/ ºC) | -- | ≥80/1300 | ≥80/1300 | ≥80/1300 | ≥80/1250 | ≥50/1350 | ≥50/1350 |
Micrographic structure | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
Magnetic properties | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic |
Characteristic:
- High-temperature stability: 0Cr23Al5 furnace wire can maintain
excellent stability in high-temperature environments, and the
maximum operating temperature can reach 1250°C.
- Antioxidant performance: Under high temperature conditions, it
forms a dense oxide protective film, which effectively prevents
further oxidation reactions and improves service life.
- Excellent resistance characteristics: 0Cr23Al5 furnace wire has
moderate resistivity, which can provide stable resistance value to
meet different heating needs.
- Corrosion resistance: This furnace wire has good corrosion
resistance to common corrosive media and can be used for a long
time in harsh environments.
Specific applications:
- Industrial heating equipment: used for heating elements such as
various industrial electric furnaces, hot air stoves and ovens to
provide uniform high-temperature heating effects.
- Home appliance field: used as heating elements in electric water
heaters, electric stoves and other household appliances to provide
fast and efficient heating functions.
- Heat treatment industry: Used as heating elements in metal heat
treatment equipment to ensure precise heating temperature and
treatment effects of metal materials.
- Laboratory equipment: Heating equipment, test furnaces, etc. used
in laboratories to provide reliable heating control and stability.
Customization:
- Diameter: The common diameter range of 0Cr23Al5 heater wire is from 0.5mm to 10mm.
- Width and thickness: The common width range of rectangular heater wire is from 0.1mm to 10mm, and the thickness is determined according to
needs.
- Length: The length of the heater wire can be customized according to the customer's specific needs.
Q&A:
What is the maximum operating temperature of 0Cr23Al5 furnace wire?
The maximum operating temperature of 0Cr23Al5 furnace wire can
generally reach about 1250 degrees Celsius.
In what fields is 0Cr23Al5 furnace wire often used?
0Cr23Al5 furnace wire is often used in electric furnace heating
elements, thermocouples, industrial heat treatment equipment and
other fields.
What is the difference between 0Cr23Al5 furnace wire and 0Cr21Al6
furnace wire?
The chemical composition of 0Cr23Al5 furnace wire and 0Cr21Al6
furnace wire is slightly different, mainly reflected in the
chromium and aluminum content. In addition, the physical properties
and mechanical properties of the two may also differ
