Introduction:

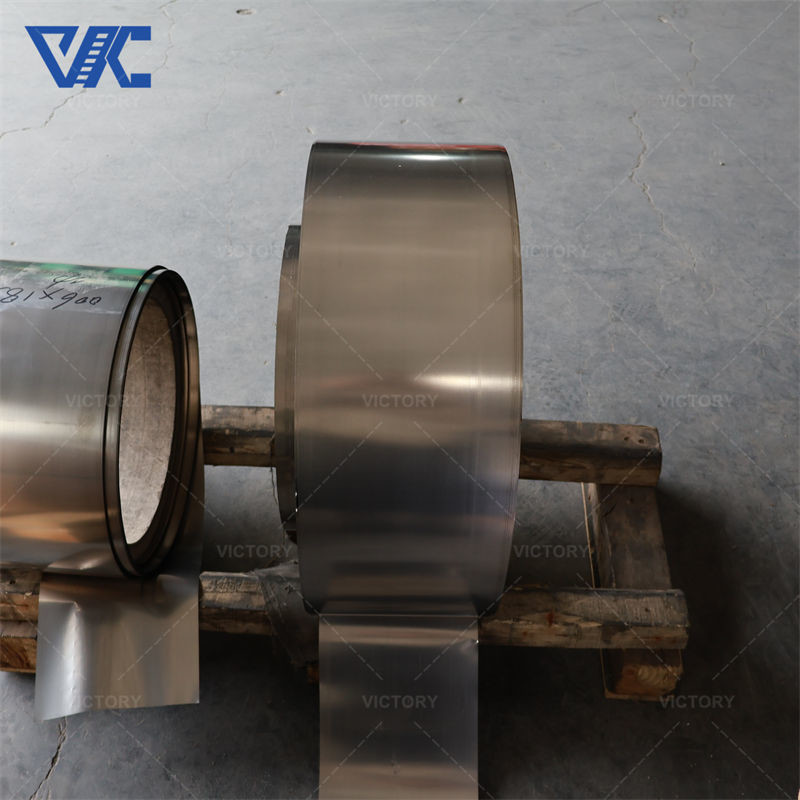

Monel 400 Strip plays an important role in the aerospace industry.
As a high-performance nickel alloy material, Monel 400 Strip has
excellent performance and characteristics and is suitable for
various applications in the aerospace field.
The main component of Monel 400 Strip is nickel, with a minimum
content of 63%. It has excellent corrosion resistance and can
resist corrosion and oxidation in various environments, including
high temperature, high pressure and chemical media. This makes it
an important choice in the aerospace industry where
corrosion-resistant materials are required.
The material has high strength and excellent mechanical properties,
allowing it to withstand the high stresses and loads found in
aerospace applications. The yield strength of Monel 400 Strip is
240 MPa, the tensile strength is around 550 MPa, it has good
ductility, and the elongation rate reaches more than 40%. This
makes it suitable for the manufacture of critical components such
as aircraft engine parts, turbine blades, gas turbine assemblies
and spacecraft structures. Monel 400 Strip also has important heat
resistance properties. It has a high melting point (1300-1350°C)
and can maintain stability and reliability in high temperature
environments. This makes it suitable for the manufacture of
high-temperature components such as aerospace engines, combustion
chambers and nozzles.
Features:
- High temperature performance: Monel 400 strip has good high
temperature stability and can maintain the structural stability and
mechanical properties of the material in high temperature
environments.
- Corrosion resistance: Monel 400 strip has excellent corrosion
resistance and can withstand corrosive media in the aerospace
industry, including acids, alkalis and high-temperature gases.
- Lightweight: Monel 400 tape is relatively lightweight compared to
other high-strength materials, helping to reduce the weight of
aerospace devices and improve overall performance.
Parameter:
Chemical Properties of Monel 400
| Ni | Cu | Al | Ti | C | Mn | Fe | S | Si |
| 63.0-70.0 | 27-33 | 2.30-3.15 | .35-.85 | 0.25 max | 1.5 max | 2.0 max | 0.01 max | 0.50 max |
Item | Density | Melting point | Tensile Strength | Yield Strength | Elongation | HB |
Monel 400 | 8.83 g/cm3 | 1300-1390℃ | 480 | 170 | 35% | ≥331 |
Monel 400 | Bar/Rod | Forging | Pipe | Sheet/Strip | Welding Wire |
Standard | ASTM B164 | ASTM B564 | ASTM B165 | ASTM B127 | ErNiCu-7 |
Mechanical Properties
Typical Room Temperature Tensile Properties of Annealed Material
| Product Form | Condition | Tensile (ksi) | .2% Yield (ksi) | Elongation % | Hardness |
| Rod & Bar | Hot-Finished/Aged | 140-190 | 100-150 | 30-20 | 27-38 HRC |
| Rod & Bar | Hot Finished/Annealed | 90-110 | 40-60 | 45-25 | 75-90 HRB |
| Rod & Bar | Hot Finished/Annealed/Aged | 130-165 | 85-120 | 35-20 | 24-35 HRC |
| Rod & Bar | Cold-Drawn/Aged | 135-185 | 95-160 | 30-15 | 25-41 HRC |
| Rod & Bar | Cold-Drawn/Annealed/Aged | 130-190 | 85-120 | 30-20 | 24-35 HRC |
| Plate | ot-Finished/Aged | 140-180 | 100-135 | 30-20 | 27-37 HRC |
| Sheet | Cold-Rolled/Annealed | 90-105 | 40-65 | 45-25 | 85 HRB Max |
For more details, pls directly contact us.
contact us
email:victory@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Specific applications:
- Aero-engine components: Monel 400 strip can be used to manufacture
aero-engine components, such as turbine blades, combustion chambers
and nozzles, which can withstand high temperature and corrosive
environmental requirements.
- Aerospace components: Monel 400 strips can be used in the
manufacture of aerospace components, such as fuel storage tanks,
thrusters and navigation systems, and can maintain stability and
reliability in harsh aerospace environments.
- Aerospace structural parts: Monel 400 strip can be used in the
manufacture of aerospace structural parts, such as aircraft shells,
wings and landing gear, etc., to resist corrosion and provide
strength support.
 |  |
Q&A:
What are the main advantages of Monel 400 strip in the aerospace
industry?
The key advantages of Monel 400 tape include high temperature
stability, corrosion resistance and lightweight, making it an
important material choice in the aerospace industry.
What are the specific applications of Monel 400 strips in
aero-engine components?
Monel 400 strip can be used to manufacture aerospace engine
components such as turbine blades and nozzles, which can withstand
high temperature and corrosive environmental requirements to ensure
engine reliability and performance.
What is the role of Monel 400 strips in aerospace structural parts?
Monel 400 strips can be used to manufacture aerospace structural
parts, such as aircraft shells and wings. They can resist corrosion
and provide lightweight strength support, providing important
material choices for the design and manufacturing of aerospace
devices.
