    Corrosion Resistance Nickel Copper Alloy Monel 400 Strip For Chemical Industry

    Ask Lasest Price
    Brand Name : Victory
    Model Number : Monel 400
    Certification : CE,ROHS,ISO 9001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 300 tons per month
    Delivery Time : 5-21 days
    • Product Details
    • Company Profile

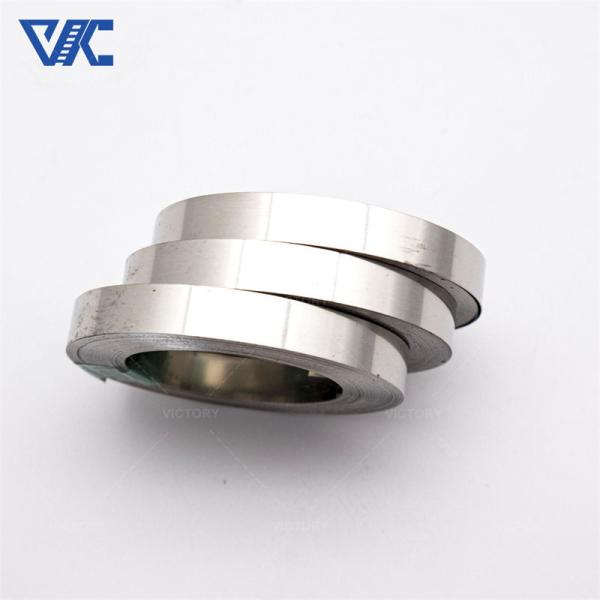

    Corrosion Resistance Nickel Copper Alloy Monel 400 Strip For Chemical Industry

    Introduction:


    Monel 400 Strip is a high-quality nickel alloy material, mainly composed of nickel, with a minimum content of 63%. It is widely used in various industrial fields, especially in chemical equipment and seawater treatment fields.

    The material has stable resistivity and is suitable for applications requiring reliable resistive performance. Compared with other materials, Monel 400 Strip performs well in high temperatures and corrosive environments, so it is widely used in chemical engineering and chemical equipment. It can withstand corrosive media and acidic environments and has excellent corrosion resistance and wear resistance.

    The tensile strength of Monel 400 Strip exceeds 690 MPa and has an elongation of more than 40%, indicating that it has good mechanical properties and plasticity. This makes it suitable for engineering applications that need to withstand high stresses and loads, such as structural components of chemical equipment and seawater treatment equipment in marine environments.


    Features:


    • Corrosion resistance: Monel 400 strip has excellent corrosion resistance and can resist a variety of corrosive media, including acids, alkalis and salt water, and is suitable for corrosive environments in the chemical industry.
    • High Strength: Monel 400 strip has high mechanical and tensile strength and is able to withstand the high pressure and high load conditions found in the chemical industry.
    • Good toughness: Monel 400 strip has good toughness and impact resistance, allowing it to maintain structural integrity under harsh working conditions.

    Parameter:


    • Chemical Properties of Monel 400

    NiCuAlTiCMnFeSSi
    63.0-70.027-332.30-3.15.35-.850.25 max1.5 max2.0 max0.01 max0.50 max
    Item
    Density
    Melting point
    Tensile Strength
    Yield Strength
    Elongation
    HB
    Monel 400
    8.83 g/cm3
    1300-1390℃
    480
    170
    35%
    ≥331
    Monel 400
    Bar/Rod
    Forging
    Pipe
    Sheet/Strip
    Welding Wire
    Standard
    ASTM B164
    ASTM B564
    ASTM B165
    ASTM B127
    ErNiCu-7

    Mechanical Properties

    Typical Room Temperature Tensile Properties of Annealed Material

    Product FormConditionTensile (ksi).2% Yield (ksi)Elongation %Hardness
    Rod & BarHot-Finished/Aged140-190100-15030-2027-38 HRC
    Rod & BarHot Finished/Annealed90-11040-6045-2575-90 HRB
    Rod & BarHot Finished/Annealed/Aged130-16585-12035-2024-35 HRC
    Rod & BarCold-Drawn/Aged135-18595-16030-1525-41 HRC
    Rod & BarCold-Drawn/Annealed/Aged130-19085-12030-2024-35 HRC
    Plateot-Finished/Aged140-180100-13530-2027-37 HRC
    SheetCold-Rolled/Annealed90-10540-6545-2585 HRB Max
    For more details, pls directly contact us.

    contact us

    email:victory@dlx-alloy.com

    Oem service:
    Welcome customized size
    We are experience factory for OEM&ODM service


    Specific applications:


    1. Chemical equipment: Monel 400 strips can be used to manufacture key components of chemical equipment, such as reactors, heat exchangers and storage tanks, and can resist the erosion of various corrosive media.
    2. Seawater treatment: Monel 400 strips can be used in seawater desalination and seawater treatment equipment, such as seawater desalators, distillers and brine filters, etc., and can resist corrosion and erosion in seawater.
    3. Chemical pipelines: Monel 400 strips can be used to manufacture chemical pipelines and pipeline connectors, and are used to transport corrosive media and chemical fluids under high temperature and high pressure conditions.

    Corrosion Resistance Nickel Copper Alloy Monel 400 Strip For Chemical IndustryCorrosion Resistance Nickel Copper Alloy Monel 400 Strip For Chemical Industry

    Q&A:


    What are the main advantages of Monel 400 strip in the chemical industry?
    The main advantages of Monel 400 strip include excellent corrosion resistance, high strength and good toughness, making it an ideal material for resisting corrosive media in the chemical industry.


    What are the specific applications of Monel 400 strips in seawater treatment?
    Monel 400 strips can be used in seawater desalination and seawater treatment equipment, such as seawater desalators and saltwater filters, to resist corrosion and erosion in seawater, ensuring the reliability and durability of the equipment.


    What is the role of Monel 400 strip in chemical pipelines?
    Monel 400 strips can be used to manufacture chemical pipelines and pipeline connections. They are used to transport corrosive media and chemical fluids under high temperature and high pressure conditions. They have excellent corrosion resistance and high strength.
