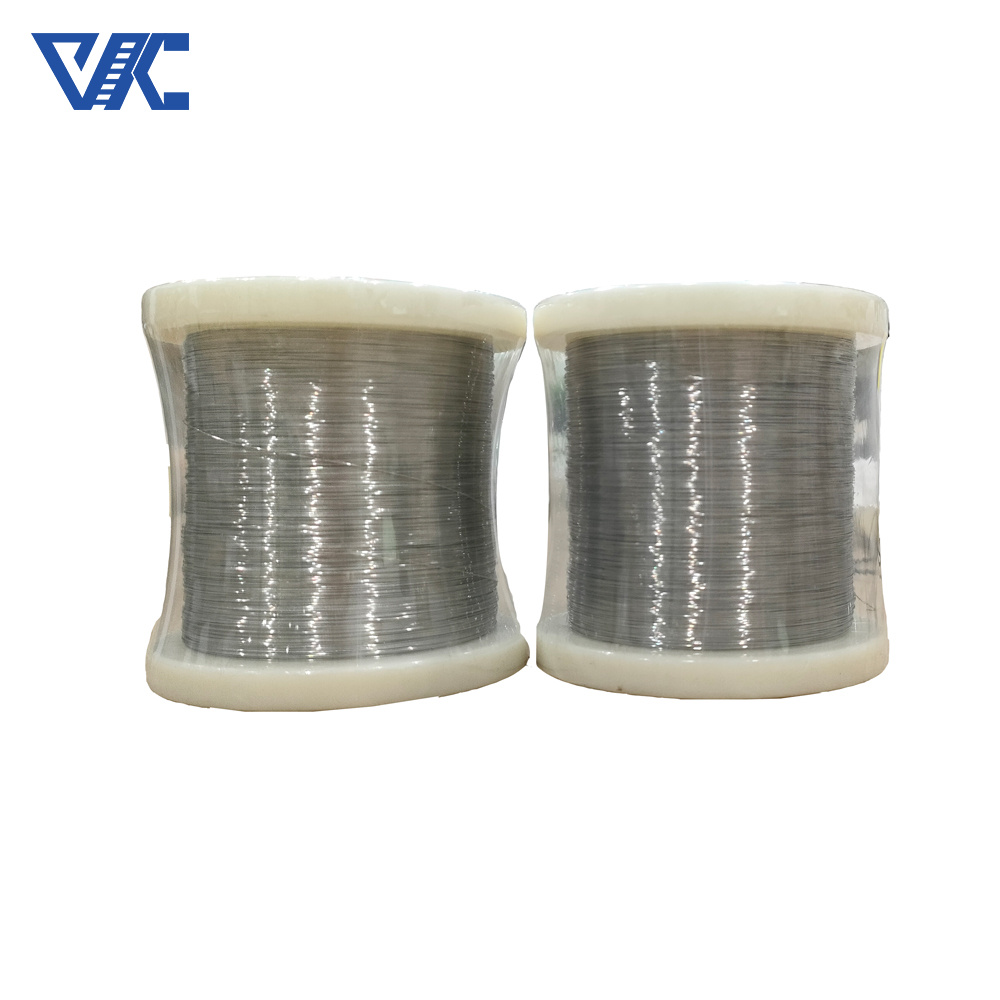

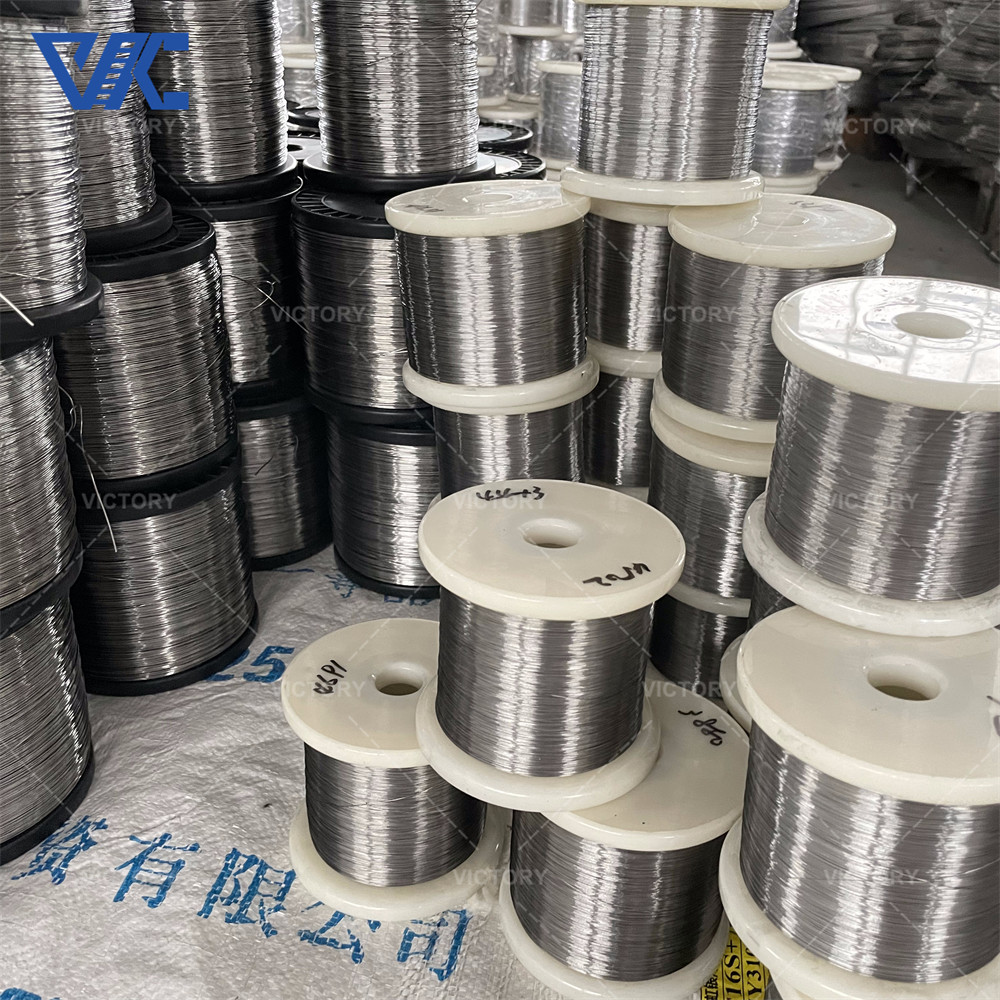

Ni80cr20 Nichrome Wire Nickel Chromium Electric Resistance Wire
Heating Element Wire
Introduction:
1. Ni80Cr20 wire is a type of resistance wire that is commonly used
in heating elements, resistors, and various electrical
applications. It is made up of 80% nickel and 20% chromium, which
gives it high electrical resistance and excellent oxidation
resistance at high temperatures. Ni80Cr20 wire is known for its
stability, durability, and ability to withstand high temperatures,
making it suitable for use in a wide range of industrial and
commercial applications.
2.Mechanical properties of ni80cr20 wire
Ni80Cr20 wire, also known as Nichrome 80/20, has the following
mechanical properties:
Tensile Strength: Ni80Cr20 wire typically has a high tensile
strength, which means it can withstand pulling forces without
breaking easily.
Elongation: It has a moderate elongation, allowing it to stretch
slightly under tension before breaking.
Hardness: Ni80Cr20 wire is known for its hardness, which
contributes to its durability and resistance to deformation.
Ductility: It exhibits good ductility, meaning it can be drawn into
wires or other shapes without breaking.
These mechanical properties make Ni80Cr20 wire a popular choice for
applications where strength, durability, and resistance to high
temperatures are required.
3. High temperature performance: Cr20Ni80 alloy wire can work
stably in high temperature environments. It has a high melting
point and good oxidation resistance, and can withstand high
temperature environments in high temperature heating and heating
element applications, with a maximum use temperature of up to 1200
degrees Celsius.
4. Resistivity: Cr20Ni80 alloy wire has moderate resistivity,
making it a commonly used resistance wire material. Its resistivity
is usually in the range of 1.09-1.12 μΩ·m and can be adjusted as
needed.
5. Corrosion resistance: Cr20Ni80 alloy wire shows good corrosion
resistance in common acid and alkali media. It can resist corrosion
by acids and alkalis of general concentrations, but it still needs
to be used with caution in special corrosive media.
| Performance material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 |
| Composición | Ni | 90 | Rest | Rest | 55.0～61.0 | 34.0～37.0 | 30.0～34.0 |
| Cr | 10 | 20.0～23.0 | 28.0～31.0 | 15.0～18.0 | 18.0～21.0 | 18.0～21.0 |
| Fe | － | ≤1.0 | ≤1.0 | Rest | Rest | Rest |
| Temperatura máxima℃ | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 |
| Punto de fusion ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 |
| Densidad g/cm3 | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 |
| Resistividad μΩ·m,20℃ | 0.76±0.05 | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 |
| Alargamiento a la ruptura | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 |
| Calor especifico J/g.℃ | － | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 |
| Conductividad térmica KJ/m.h℃ | － | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 |
| Coeficiente de expansión de líneas a×10-6/(20～1000℃) | － | 18 | 17 | 17 | 19 | 19 |
| Estructura micrográfica | － | Austenite | Austenite | Austenite | Austenite | Austenite |
| Propiedades magnéticas | － | Nonmagnetic | Nonmagnetic | Nonmagnetic | Weak magnetic | Weak magnetic |
| Form | Specification |
| Wire | Diameter=0.025mm~8mm |
| Flat wire | Width=0.40~6.0mm | Thick=0.03~0.50mm |
| Strip | width=8~250mm | Thick=0.05~3.0mm |
| Bar | Diameter=8~100mm | Long=50~1000 |
Application fields:
Due to its high temperature performance and corrosion resistance,
Cr20Ni80 alloy wire is widely used in industrial heaters, electric
furnace heating elements, hot blast furnaces, resistance heaters,
heat treatment equipment and other fields. It is also used to make
electric heating elements such as resistance wires, heating wires,
and electric heaters.
Service:
We provide comprehensive nickel-chromium alloy technical support
and services to ensure the normal operation of our customers'
products. Our experienced technical team will provide customers
with various services such as installation, maintenance,
troubleshooting, and answer any questions they may have about the
product. We also provide customized solutions, designing and
manufacturing nickel-chromium alloy products according to customer
needs. We are committed to ensuring customers are satisfied with
their purchases, providing timely support and building great
relationships.
contact us
email:victory@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Size dimension range:
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
NiCr series: Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30
FAQ:
Are you a manufactuer?
Yes, we are the factory and mailny produce heating resistance alloy
wire, like Fecral/Nichrome material.
What is the chemical composition of Cr20Ni80 alloy wire?
The chemical composition of Cr20Ni80 alloy wire is approximately
20% chromium (Cr) and 80% nickel (Ni).
What is the diameter range of Cr20Ni80 alloy wire?
The diameter range of Cr20Ni80 alloy wire can be customized
according to needs, usually ranging from a few microns to a few
millimeters.
