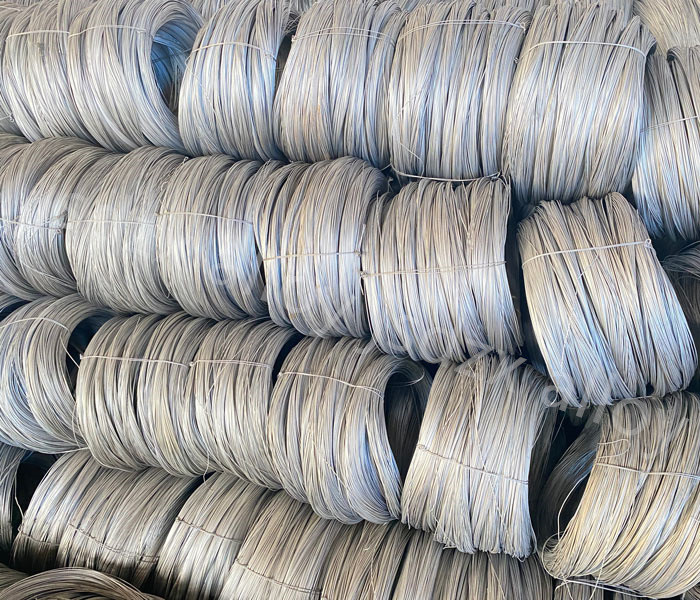

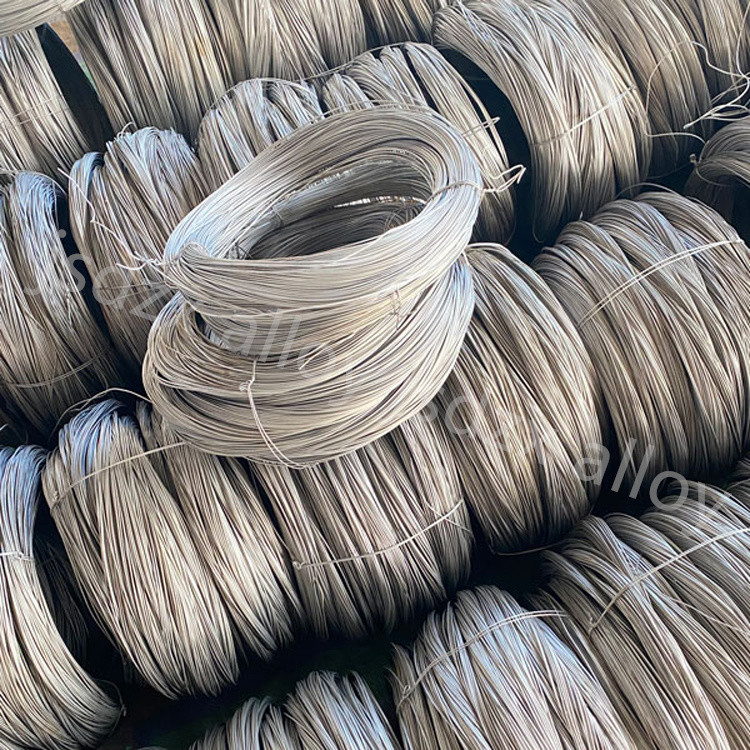

14AWG 1.60mm Iron Chrome FeCrAl Alloy 0Cr21Al4 Heating Resistance
Wire For Industry Heating Elements
General Introduction:
0Cr21Al4 is a type of iron-chromium-aluminum (FeCrAl) alloy with
the following composition:
21% Chromium (Cr)
4% Aluminum (Al)
Iron (Fe) and trace amounts of other elements.
This alloy is known for its high resistance to oxidation and
corrosion at high temperatures, making it suitable for use in
heating elements, industrial furnaces, and various electrical
applications. 0Cr21Al4 has good mechanical properties and can
withstand high temperatures up to around 1100°C.
Due to its excellent oxidation resistance, this alloy is commonly
used in environments where high temperatures and harsh conditions
are present. It is also known for its relatively low cost compared
to some other high-temperature alloys, making it a popular choice
in various industrial applications.
What is 0Cr21Al4 Wire Main Applications and Working Performance?
Heating Elements: 0Cr21Al4 wire is widely used in heating elements
for industrial furnaces, ovens, electric heaters, and kilns due to
its high temperature resistance and oxidation resistance.
Applications:
1. Household Appliances: It is used in appliances like electric
stoves, toasters, and hair dryers where resistance heating is
required.
2. Industrial Furnaces: The wire is used in industrial furnaces for
processes such as heat treatment, forging, and annealing due to its
ability to withstand high temperatures.
3. Infrared Heaters: 0Cr21Al4 wire is used in infrared heaters for
various applications including space heating and industrial
processes.
4. Resistance Wire: It is used as a resistance wire in electrical
components and circuits due to its stable electrical properties.
Working Performance:
1. High Temperature Resistance: 0Cr21Al4 wire can withstand
temperatures up to around 1100°C without significant degradation.
2. Oxidation Resistance: The alloy has excellent oxidation
resistance, maintaining its properties even at high temperatures in
oxidizing atmospheres.
3. Mechanical Strength: It has good mechanical properties,
providing durability and reliability in various applications.
4. Corrosion Resistance: The wire exhibits good corrosion
resistance, making it suitable for use in harsh environments.
5. Electrical Resistance: 0Cr21Al4 wire has a stable electrical
resistance, making it ideal for use in heating elements and
electrical circuits.
| Shape | Size (mm) |
| Wire | 0.025-8.00mm |
| Rod | 8.00-50.00mm |
| Robbin | (0.05-0.35)*(0.5-6.0)mm |
| Strip | (0.50-2.50)*(5.00-180.00)mm |
| Alloy Nomenclature Performance | 1Cr13Al4 | 0Cr25Al5 | 0Cr21Al6 | 0Cr23Al5 | 0Cr21Al4/ 0Cr19Al3 | 0Cr21Al6Nb | 0Cr27Al7Mo2 |
| Main chemical composition | Cr | 12.0-15.0 | 23.0-26.0 | 19.0-22.0 | 20.5-23.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.3 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 |
| Rest | opportune | opportune | opportune | opportune | opportune | opportune | opportune |
| Fe | Rest | Rest | Rest | Rest | Rest | Rest | Rest |
| Others | -- | -- | -- | -- | -- | Nb 0.5 | Mo 1.8-2.2 |
| Max. continuous service temp. of element( °C ) | 950 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 |
| Resistivity at 20ºC(μΩ@m) | 1.25 | 1.42 | 1.42 | 1.35 | 1.23 | 1.45 | 1.53 |
| Density(g/cm3) | 7.4 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 |
| Thermal conductivity(KJ/m@h@ºC) | 52.7 | 46.1 | 63.2 | 60.2 | 46.9 | 46.1 | |
| Line expansion coefficient(α×10-6/ºC) | 15.4 | 16 | 14.7 | 15 | 13.5 | 16 | 16 |
| Melting point approx.( ºC) | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1520 |
| Tensile Strength(N/mm2) | 580-680 | 630-780 | 630-780 | 630-780 | 600-700 | 650-800 | 680-830 |
| Elongation at break(%) | >16 | >12 | >12 | >12 | >12 | >12 | >10 |
| Variation of area(%) | 65-75 | 60-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 |
| Repeat bending frequency(F/R) | >5 | >5 | >5 | >5 | >5 | >5 | >5 |
| Hardness (H.B.) | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 |
| continuous service time(Hours/ºC) | -- | ≥80/1300 | ≥80/1300 | ≥80/1300 | ≥80/1250 | ≥50/1350 | ≥50/1350 |
| Micrographic structure | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Magnetic properties | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic |
Are you a Manufacturer or Trader?
We are a Manufacturer.
Do you provide free samples?
Yes, we can provide a free sample for testing,buyer should bear all
the shipping costs.
What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal.
What is the lead time?
Usually sample lead time is 7 days after payment has been
confirmed.
