Product Description:

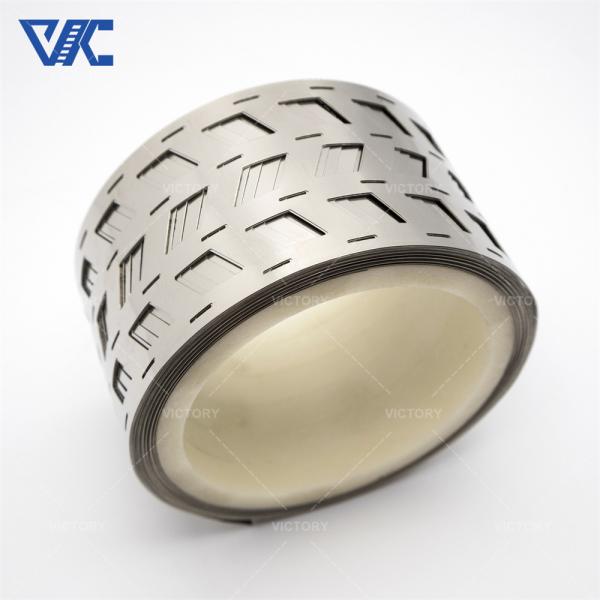

Pure nickel belt is a belt-shaped material made of high-purity
nickel metal. It has uniform thickness and width, and undergoes
strict quality control during the manufacturing process to ensure
its excellent quality.
Pure nickel tape has excellent corrosion resistance. Nickel has
good stability and corrosion resistance, and can maintain its
surface integrity and stability in harsh environments such as
acids, alkalis, and salt solutions. Therefore, pure nickel strips
are widely used in chemical industry, marine engineering,
petrochemical industry and other fields.
Pure nickel belt also has excellent mechanical properties and
processability. It has high strength and good ductility and can be
formed through process operations such as cold working, hot working
and welding. This makes pure nickel strips widely used in fields
such as automotive manufacturing, aerospace, power industry and
manufacturing.
Advantages:
1. Excellent electrical conductivity: Pure nickel tape has high
electrical conductivity and can provide a low-resistance current
conduction path to ensure high-efficiency transmission of
electrical energy between battery connectors.
2. Good welding performance: Pure nickel strips are easy to weld
and can be reliably welded to other battery components to ensure
the stability of the connection.
3. Anti-corrosion performance: Pure nickel strips have high
corrosion resistance and can work stably for a long time in
corrosive media, extending the service life of the battery
connector.
4. Mechanical strength and flexibility: Pure nickel tape has
moderate mechanical strength and flexibility, which can adapt to
the deformation and vibration of battery components and maintain
the stability of the connection.
5. High-temperature stability: Pure nickel tape has good
high-temperature stability and can maintain stable electrical
properties and mechanical strength in high-temperature
environments, making it suitable for high-temperature battery
applications.
Attributes:
- Material: Pure nickel belt is a belt-shaped material made of nickel
metal with higher purity.
- Conductivity: Pure nickel tape is highly conductive, typically
having a conductivity of approximately 15-22 MS/m.
- Corrosion resistance: Pure nickel strips have high corrosion
resistance and can resist erosion by corrosive media and maintain
the stability and durability of the connecting piece.
- Mechanical properties: Pure nickel strips have moderate mechanical
strength and flexibility and are able to withstand deformation and
vibration of battery components.
- Thermal stability: Pure nickel tape has good high-temperature
stability and can maintain stable electrical properties and
mechanical strength in high-temperature environments.
Parameter:
Size: The size of pure nickel strip can be customized according to
specific needs, including width, thickness and length, etc.
Purity: The purity of pure nickel ribbon is usually higher and can
be 99.5% or higher.
Conductivity: The conductivity of pure nickel tape is typically in
the range of 15-22 MS/m, providing excellent electrical
conductivity.
Technical Parameters:
| Attribute | Value |
|---|
| Application | Chemical Industry, Battery Assembly |
| Conductor | Pure Nickel Connector |
| Melting Point(℃) | 1435-1446 ℃ |
| Ultimate Strength (≥ MPa) | 462 |
| Power Or Not | Not |
| Type | Pure Nickel Strip |
| Material Purity | >99.9% |
| Purity | 99.5%Min/ 99.9%Min(customized) |
| Elongation (≥ %) | 45 |
| Resistance (μΩ.m) | 1.5 |
Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
N4 | 99.8 | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.001 | 0.04 |
N6 | 99.6 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
Ni201 | ≥99.0 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
Ni200 | ≥99.2 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.15 | / | ≤0.01 | / | ≤0.40 |

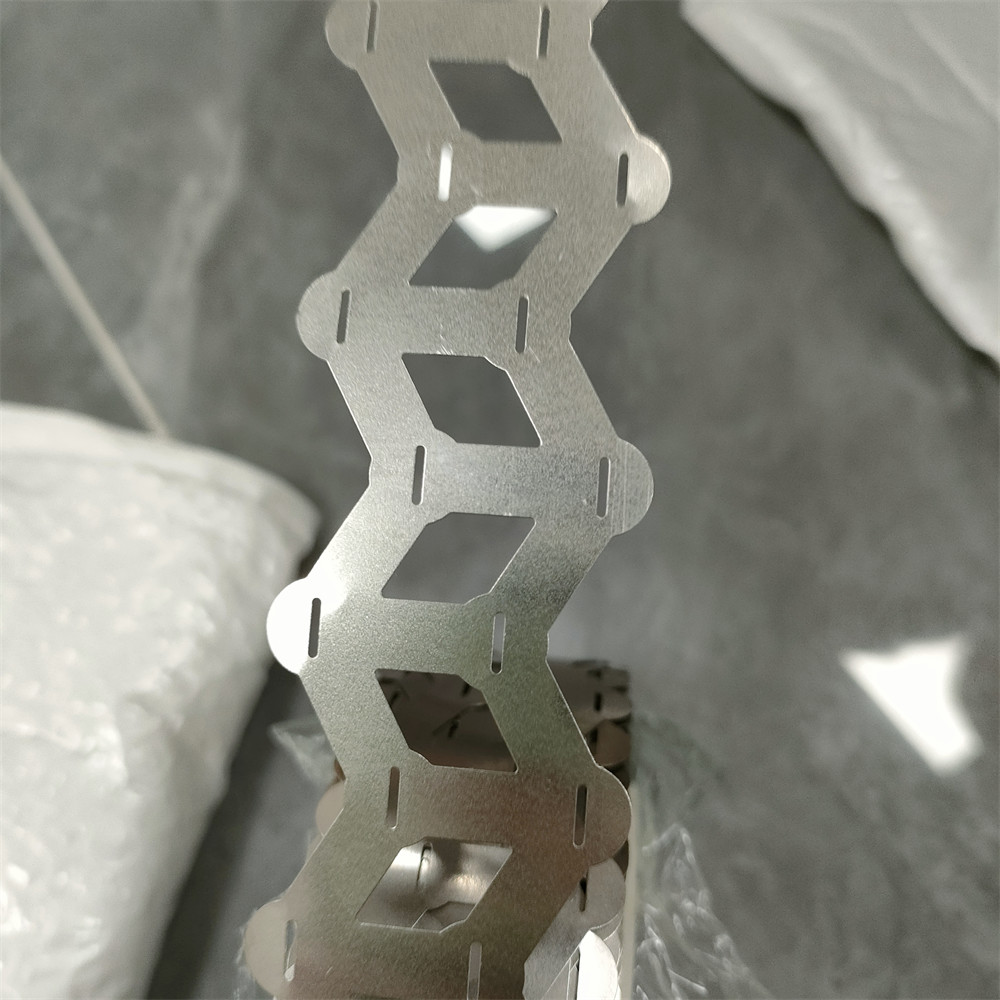

Material | 18650/21700/26650/32650 nickel strip |
Dimension | 1P to 9P |
Available Space | 18.5mm,19mm, 19.5mm, 20.2mm |
Usage | Use for 18650 battery pack |
Package | Nickel strip in roll pack into carton |
Physical properties | High temperature resistant, corrosion resistance, |
Technical support | With imported stamping machine, Japanese Sodick, complete mold
(more than 2000 sets of battery industry hardware mold), and can
open mold independently. |
Functions | Products are widely used in energy storage battery, new energy
vehicles, electric bicycles, solar street lights, power tools and
other energy products |
Advantage | All materials are degreased and adopt the dry -punching technology
to ensure that the product is clean. |
contact us
email:victory@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
FAQ:
What are the applications of pure nickel strips in the aerospace
field?
Pure nickel strips are commonly used in the aerospace field for
components with high temperature and high strength requirements
such as gas turbine engines and avionics equipment.
How are pure nickel strips usually transported?
Pure nickel strips are usually shipped by sea, air or land,
depending on the negotiation between the customer and supplier.
What are the applications of pure nickel belts in the chemical
industry?
Pure nickel belts are commonly used in the chemical industry to
manufacture corrosion-resistant and high-temperature-resistant
equipment such as reactors, heat exchangers, and chemical valves.
