Product Description:

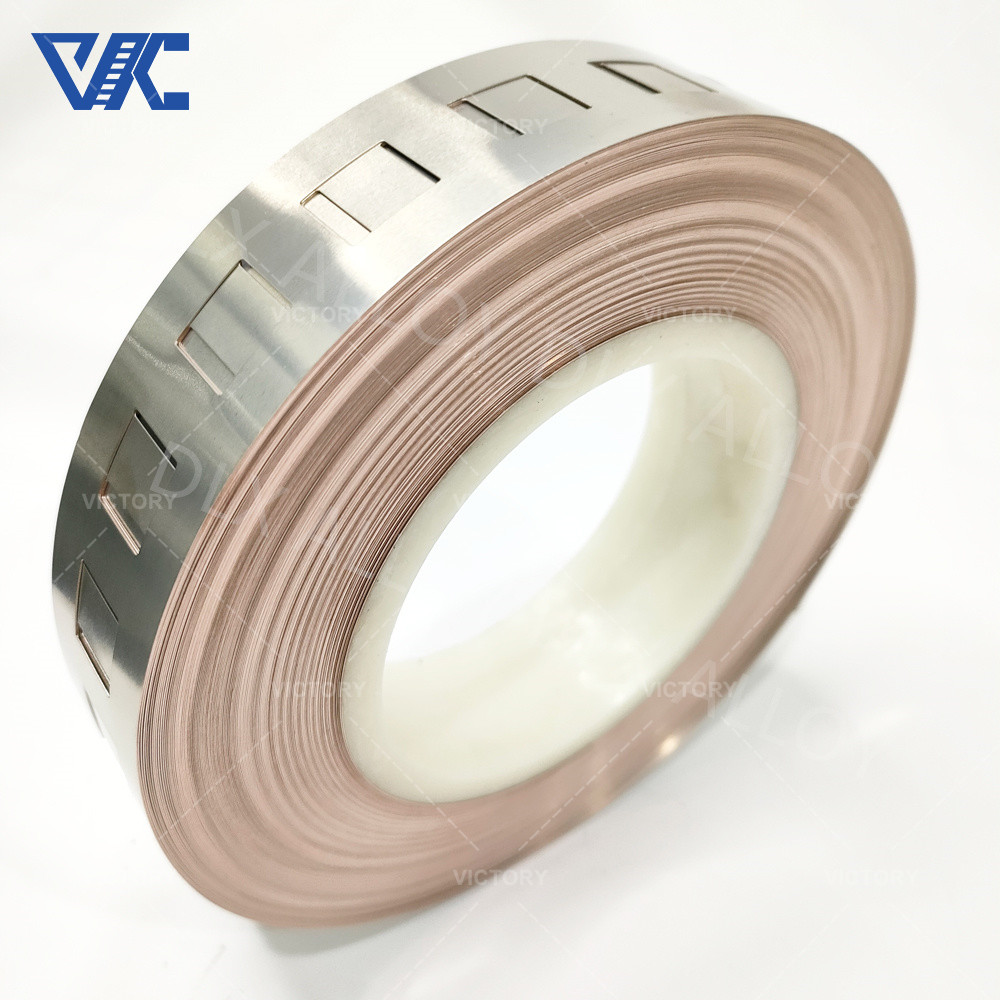

Pure nickel strip is a metal strip with high purity and no
impurities, which is made of pure nickel metal. It has uniform
thickness and width, can be customized according to customer needs,
and is suitable for various application fields.
Pure nickel belt has excellent corrosion resistance and can
maintain good stability in corrosive media. It can resist the
erosion of various chemical substances such as acids, alkalis, and
salt solutions, so it is widely used in chemical industry,
petrochemical industry, marine engineering and other fields.
Pure nickel tape also has excellent electrical and thermal
conductivity and is suitable for use in electronic components, heat
exchangers, batteries and other fields. Nickel is a good conductive
metal that can effectively conduct electric current and can also
quickly transfer heat to meet the requirements of different
applications for electrical and thermal conductivity.
Compared:
Compared with other materials, the application of pure nickel
strips in battery connectors has the following advantages:
1. Low resistance: Compared to other materials, pure nickel tape
has a lower resistance, providing lower resistive losses and higher
current transfer efficiency.
2. Corrosion resistance: Pure nickel strips have high corrosion
resistance and can work stably in corrosive media for a long time,
reducing corrosion losses of battery connectors.
3. High-temperature stability: Pure nickel tape has good
high-temperature stability and can maintain stable electrical
properties and mechanical strength in high-temperature
environments, making it suitable for high-temperature battery
applications.
Advantages:
1. Excellent electrical conductivity: Pure nickel tape has good
electrical conductivity and can provide a low-resistance current
conduction path to ensure high-efficiency transmission of
electrical energy between battery connectors.
2. Good welding performance: Pure nickel strips are easy to weld
and can make reliable welding connections with other battery
components. This welded connection provides stable battery
performance and good mechanical strength.
3. High temperature tolerance: Pure nickel tape has good high
temperature stability and can maintain stable electrical properties
and mechanical strength in high temperature environments, making it
suitable for high temperature battery applications.
4. Anti-corrosion performance: Pure nickel strips have high
corrosion resistance and can work stably for a long time in
corrosive media, extending the service life of the battery
connector.
5. Mechanical strength and flexibility: Pure nickel tape has
moderate mechanical strength and flexibility, which can adapt to
the deformation and vibration of battery components and maintain
the stability of the connection.
Technical Parameters:
| Attribute | Value |
|---|
| Application | Chemical Industry, Battery Assembly |
| Conductor | Pure Nickel Connector |
| Melting Point(℃) | 1435-1446 ℃ |
| Ultimate Strength (≥ MPa) | 462 |
| Power Or Not | Not |
| Type | Pure Nickel Strip |
| Material Purity | >99.9% |
| Purity | 99.5%Min/ 99.9%Min(customized) |
| Elongation (≥ %) | 45 |
| Resistance (μΩ.m) | 1.5 |
Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
N4 | 99.8 | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.001 | 0.04 |
N6 | 99.6 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
Ni201 | ≥99.0 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
Ni200 | ≥99.2 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.15 | / | ≤0.01 | / | ≤0.40 |
Material | 18650/21700/26650/32650 nickel strip |
Dimension | 1P to 9P |
Available Space | 18.5mm,19mm, 19.5mm, 20.2mm |
Usage | Use for 18650 battery pack |
Package | Nickel strip in roll pack into carton |
Physical properties | High temperature resistant, corrosion resistance, |
Technical support | With imported stamping machine, Japanese Sodick, complete mold
(more than 2000 sets of battery industry hardware mold), and can
open mold independently. |
Functions | Products are widely used in energy storage battery, new energy
vehicles, electric bicycles, solar street lights, power tools and
other energy products |
Advantage | All materials are degreased and adopt the dry -punching technology
to ensure that the product is clean. |
contact us
email:victory@dlx-alloy.com
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
FAQ:
What are the applications of pure nickel strips in the energy
field?
Pure nickel ribbons are often used in the manufacturing of new
energy equipment such as fuel cells and solar cells in the energy
field.
Does Pure Nickel Strip provide technical support and consulting
services?
Yes, pure nickel strip suppliers usually provide technical support
and consulting services to help customers solve technical problems
and provide relevant suggestions.
In what form is pure nickel strip usually supplied?
Pure nickel strip is usually supplied in rolls and can be cut and
processed as required.
