Brand Name : | Victory |
Model Number : | N4,N6,Ni200,Ni201 |
Certification : | ISO9001,ROHS |
Price : | 5 - 99 kilograms US$45.00 |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Supply Ability : | 300 tons per month |
Delivery Time : | 7-25 days |
Introduction:

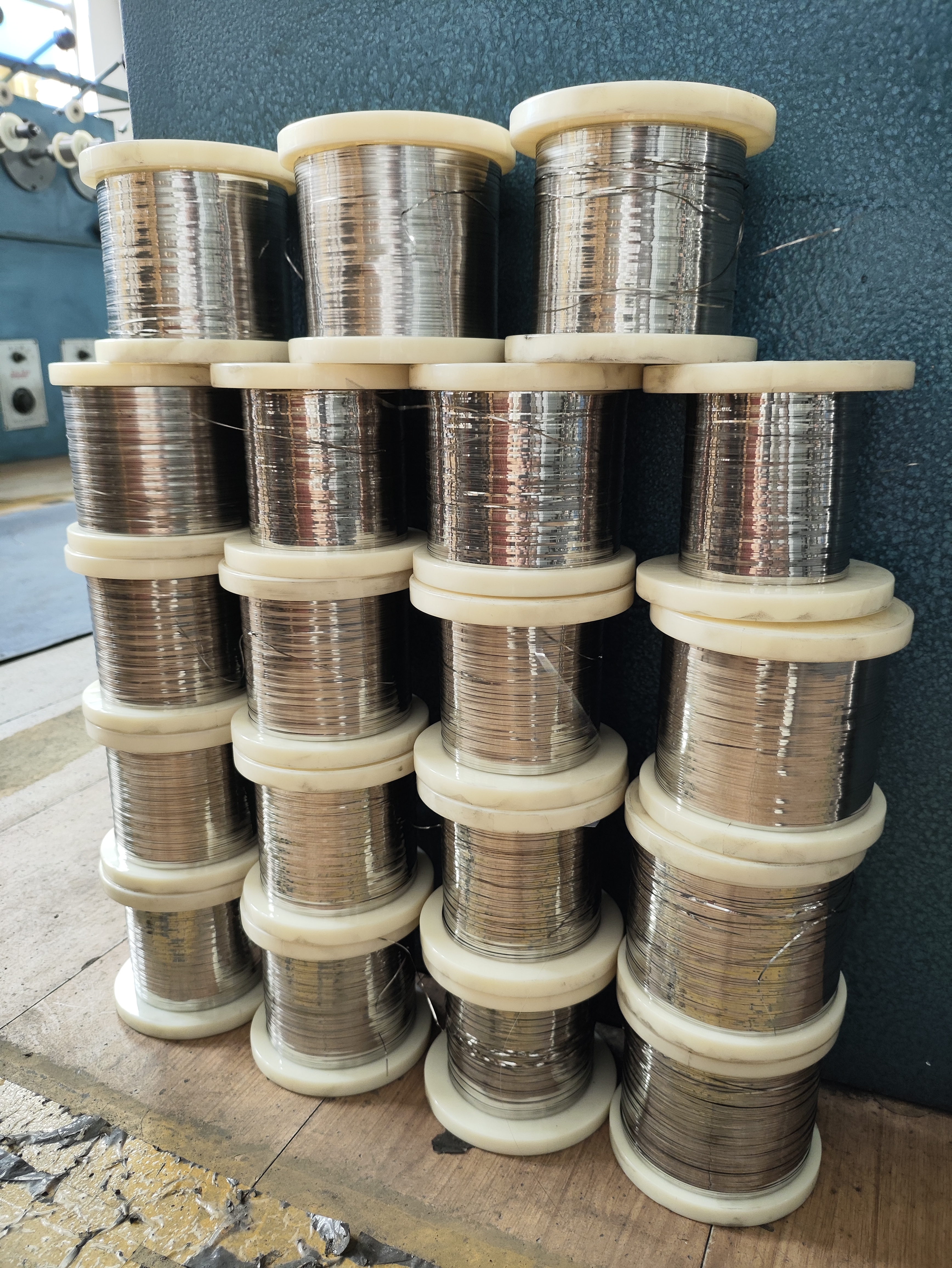

1. Introducing our pure nickel wire, a customizable and high-quality product designed to meet your specific requirements.
2. Crafted from highly pure nickel metal, this wire offers exceptional properties and can be tailored to suit various applications.
3. With our customizable options, you have the flexibility to specify the diameter, length, and surface finish of the pure nickel wire to meet your exact needs.
4. Whether you require a fine diameter wire for intricate electronic circuitry or a thicker gauge wire for robust industrial applications, we can provide a solution that matches your specifications.
Characteristics:
1. High Temperature Stability: Pure nickel wire maintains its physical and chemical properties even at high temperatures, making it suitable for use in high-temperature applications.
2. Versatility: Pure nickel wire finds applications in a wide range of industries, including electronics, aerospace, chemical processing, and jewelry making, due to its unique combination of properties.
3. Reliability: Pure nickel wire is known for its reliability and long service life, ensuring consistent performance in demanding environments.
4. Biocompatibility: Pure nickel wire is biocompatible, making it suitable for use in medical and healthcare applications.
Specification:
Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
N4 | 99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 |
N6 | 99.5 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
Ni201 | ≥99.9 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
Ni200 | ≥99.6 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.15 | / | ≤0.01 | / | ≤0.40 |
Physical Data | |
Density | 8.89g/cm3 |
Specific Heat | 0.109(456 J/kg.ºC) |
Electrical Resistivity | 0.096×10-6ohm.m |
Melting Point | 1435-1446ºC |
Thermal Conductivity | 70.2 W/m-K |
Mean Coeff Thermal Expansion | 13.3×10-6m/m.ºC |
Typical Mechanical Properties | |
Mechanical Properties | Nickel 200 |
Tensile Strength | 462 Mpa |
Yield Strength | 148 Mpa |
Elongation | 47% |
![]() |
|
![]() | ![]() |
![]() |
