Pure Nickel Wire Ni200 Nickel Wire 0.025 mm 99.96% Pure Nickle Wire

Ask Lasest Price
Brand Name :	Victory
Model Number :	N4,N6,Ni200,Ni201
Certification :	ISO9001,ROHS
Price :	5 - 99 kilograms US$45.00
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	300 tons per month
Delivery Time :	7-25 days

Add to Cart

Product Details
Company Profile

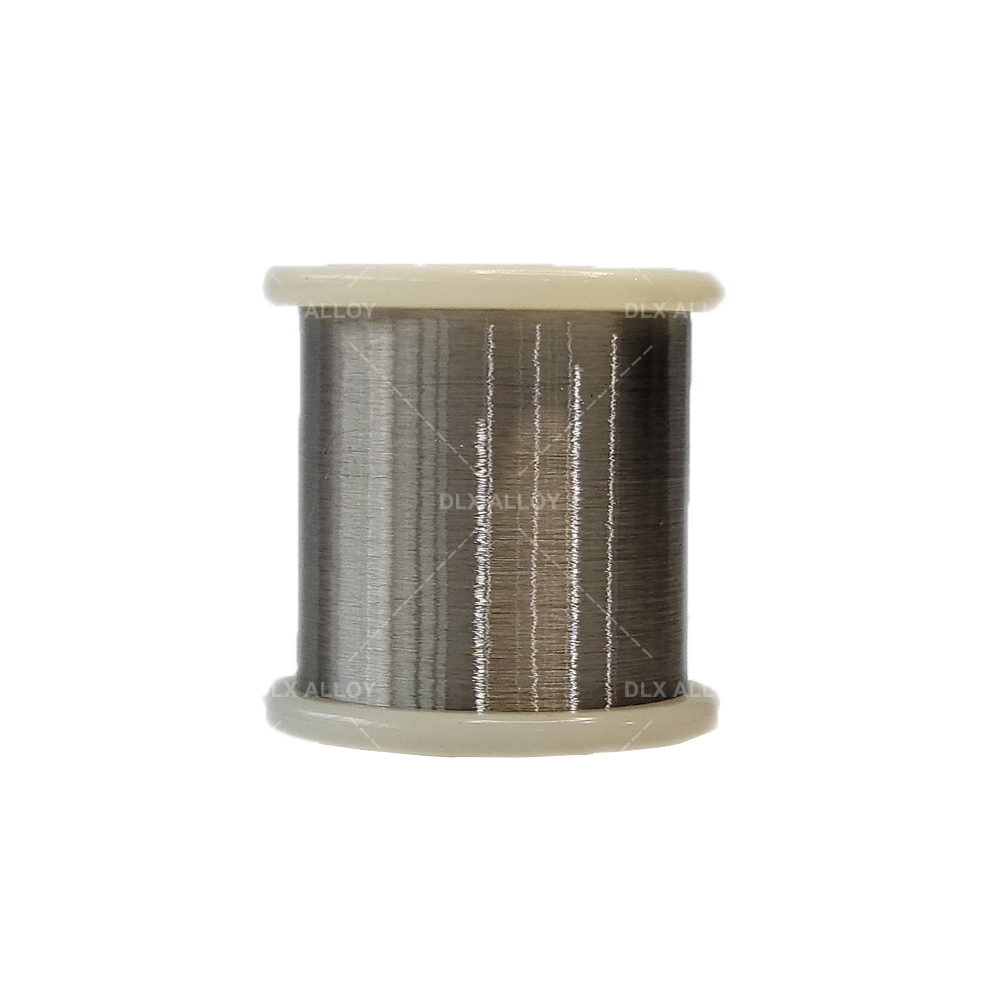

Pure Nickel Wire Ni200 Nickel Wire 0.025 mm 99.96% Pure Nickle Wire

Introduction:

1. This ultra-fine pure nickel wire maintains excellent electrical conductivity and high thermal conductivity, making it suitable for applications that require efficient transmission of electricity or heat in confined spaces.

2. The 0.025mm pure nickel wire combines the exceptional properties of pure nickel with the advantages of a fine and delicate form, making it a valuable material for various high-precision applications.

Specification:

Grade	Ni+Co	Cu	Si	Mn	C	Mg	S	P	Fe
N4	99.9	≤0.015	≤0.03	≤0.002	≤0.01	≤0.01	≤0.001	≤0.001	≤0.04
N6	99.5	0.10	0.10	0.05	0.10	0.10	0.005	0.002	0.10
Ni201	≥99.9	≤0.25	≤0.35	≤0.35	≤0.02	/	≤0.01	/	≤0.40
Ni200	≥99.6	≤0.25	≤0.35	≤0.35	≤0.15	/	≤0.01	/	≤0.40

Physical Data
Density	8.89g/cm3
Specific Heat	0.109(456 J/kg.ºC)
Electrical Resistivity	0.096×10-6ohm.m
Melting Point	1435-1446ºC
Thermal Conductivity	70.2 W/m-K
Mean Coeff Thermal Expansion	13.3×10-6m/m.ºC

Typical Mechanical Properties
Mechanical Properties	Nickel 200
Tensile Strength	462 Mpa
Yield Strength	148 Mpa
Elongation	47%

Application:

1. Aerospace and Aviation: The ultra-fine pure nickel wire is utilized in aerospace and aviation applications, such as temperature sensors, strain gauges, and control systems. Its high temperature stability and corrosion resistance make it suitable for demanding environments.

2. Jewelry and Craftsmanship: Due to its fine diameter, pure nickel wire can be used in intricate jewelry designs, wire wrapping, and craft projects. It offers a combination of malleability and durability for creating delicate wirework.

3. Its fine size and exceptional properties make it a valuable material in industries that require precision, reliability, and corrosion resistance in compact and delicate components.

Shape	Size(mm)
Wire	0.025-10
Ribbon	(0.05-0.2)*(0.5-6)
Strip	(0.05-0.5)*(5-200)
