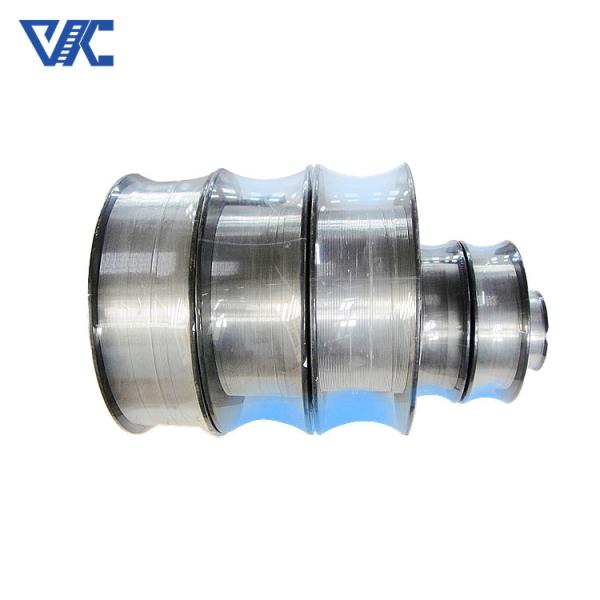

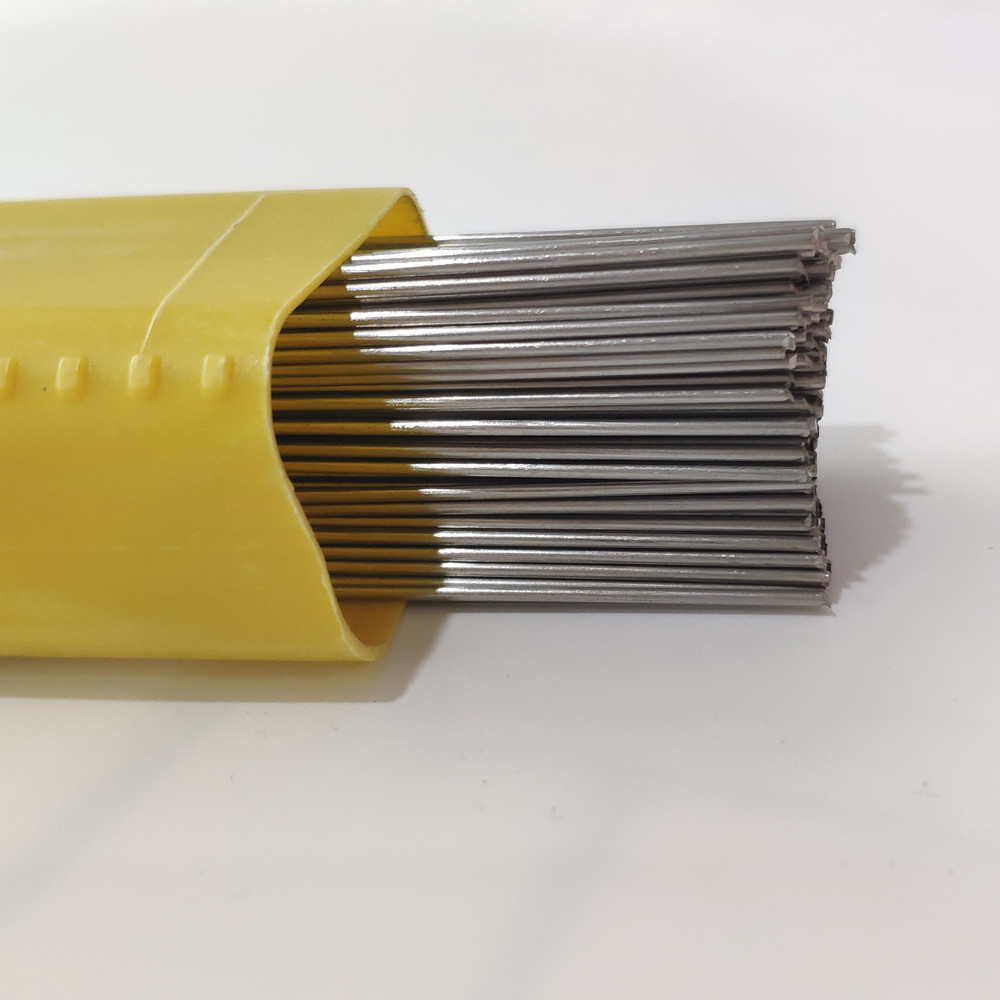

Nickel Alloy Welding Wire Inconel 625 AWS ENiCrMo-3 Ernicrmo-13 Welding Wire

Ask Lasest Price
Brand Name :	Victory
Model Number :	ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-7,ERNiCr-3
Certification :	CE,ROHS,ISO 9001
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	300 tons per month
Delivery Time :	5-21 days

Add to Cart

Product Details
Company Profile

Nickel Alloy Welding Wire Inconel 625 AWS ENiCrMo-3 Ernicrmo-13 Welding Wire

Manufacture Nickel Alloy Wels Wire Inconel 625 AWS ENiCrMo-3 Ernicrmo-13 Welding Wire Price Per Kg

Nickel welding wire is a commonly used metal welding material, including multiple brands, such as ERNiCrMo-3, ERNiCrMo-4, ERNiCrMo-13, ERNiCrFe-7 and ERNiCr-3. These wires are available in different alloy compositions and welding properties for a variety of specific welding applications. They are widely used in chemical, petrochemical, aerospace and other industries to provide excellent corrosion resistance, high temperature stability and welding performance when welding metal workpieces such as high alloy steel, nickel alloy and stainless steel.

Selecting the appropriate grade depends on specific welding requirements, metal materials and process conditions. When using nickel welding wire, it is recommended to refer to the manufacturer's specification sheet and technical data to ensure correct welding parameters and operating procedures to obtain a high-quality weld joint and meet the needs of the specific application.

Chemical Properties

C	Si	Mn	Cr	P	Ni
≤0.01	≤0.2	≤0.5	22.0-24.0	≤0.015	Rem
Al	Mo	Fe	Cu	S	Co
0.10-0.40	15.0-16.50	≤0.5	≤0.1	<0.01	<0.20

Typical Welding Parameters
Diameter		Process	Volt	Amps (flat)	Amps (V/OH)
inch	(mm)	Process	Volt	Amps (flat)	Amps (V/OH)
0.035	0.9	GMAW	26-29	150-190	Spray Transfer 100% Argon
0.045	1.2	GMAW	28-32	180-220	Spray Transfer 100% Argon
1/16	1.6	GMAW	29-33	200-250	Spray Transfer 100% Argon
1/16	1.6	GTAW	14-18	90-130	100% Argon
3/32	2.4	GTAW	15-20	120-175	100% Argon
1/8	3.17	GTAW	15-20	150-220	100% Argon

Tensile Strength	109 Ksi	790 MPA
Yield Strength	68 Ksi	470 MPA
Elongation	40-45%
Density g/cm3	8.60 g/cm3
Melting Point ℃	1300-1360℃
Coefficient of Expansion. 21-93 Co, μm/m * Co	11.90

Item	ERNiCrMo-3	ERNiCrMo-4	ERNiCrMo-13	ERNiCrFe-7	ERNiCr-3	ERNiCu-7	ERCuNi	ERNi-1
C	0.1	0.02	0.01	0.04	0.1	0.15	0.03	0.15
Mn	0.05	1	0.5	1	2.5-3.5	4	0.5-1.0	1
Fe	5	4-7	1.5	7-11	3	2.5	0.65	1
P	0.02	0.04	0.015	0.02	0.03	0.02	0.01	0.03
S	0.015	0.03	0.005	0.015	0.015	0.015	0.01	0.015
Si	0.05	0.08	0.1	0.5	0.5	1.25	0.15	0.75
Cu	0.5	0.5	N/A	0.3	0.5	rest	rest	0.25
Ni	≥58	rest	rest	rest	≥67	62-69	30-32	≥93
Co	N/A	2.5	0.3	N/A	N/A	N/A	N/A	N/A
Al	0.4	N/A	0.1-0.4	1.1	N/A	1.25	0.15	1.5
Ti	0.4	N/A	N/A	1	0.75	1.5-3	0.5	2-3.5
Cr	20-23	14.5-16.5	22-24	28.5-31	18.0-22.0	N/A	N/A	N/A
Nb+Ta	3.5-4.15	N/A	1.8-2.5	0.01	2.0-3.0	N/A	N/A	N/A
Mo	8.0-10	15-17	15-16	0.5	N/A	N/A	N/A	N/A
V	N/A	0.35	N/A	N/A	N/A	N/A	N/A	N/A
W	N/A	3.-4.5	N/A	N/A	N/A	N/A	N/A	N/A
Rest	≤0.50	≤0.50	≤0.50	≤0.50	≤0.50	≤0.50	≤0.50	≤0.50

Nickel Alloy Welding Wire Inconel 625 AWS ENiCrMo-3 Ernicrmo-13 Welding Wire
