S Type Platinum Rhodium Thermocouple Bare Wire

Ask Lasest Price
Brand Name :	Victory
Model Number :	K,N,E,J,T,B,R,S Types
Certification :	CE,ROHS,ISO 9001
Price :	5 - 499 kilograms $35.00
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	300 tons per month
Delivery Time :	5-21 days

Add to Cart

Product Details
Company Profile

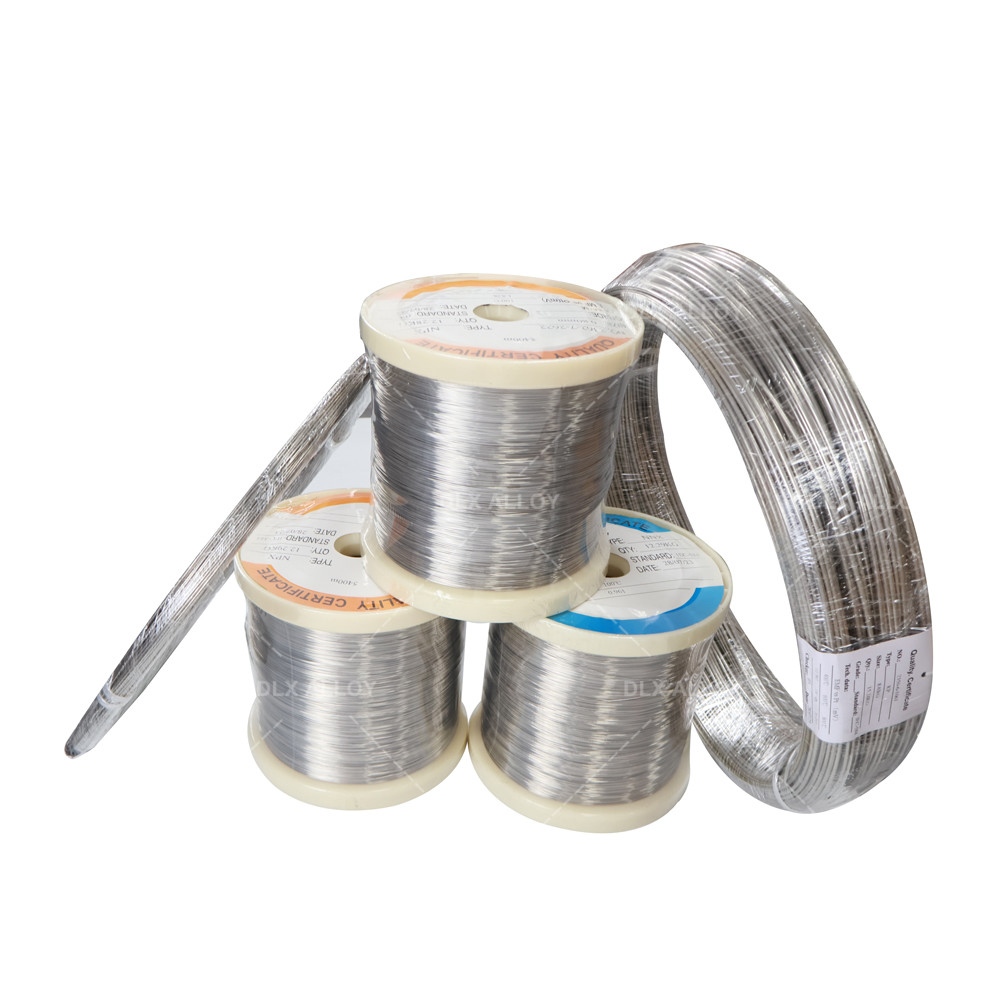

0.3mm/0.4mm/0.5mm B/R/S Type Platinum Rhodium Thermocouple Bare Wire

The Thermocouple bare wire product series provides a variety of models and specifications, including K-type, J-type, T-type and E-type. Each model features a different combination of metals to accommodate different temperature ranges and environmental conditions.

These Thermocouple bare wires have high-precision temperature measurement capabilities and are typically able to achieve low temperature deviations. They have fast response speed and can accurately capture temperature changes, providing reliable data for real-time temperature monitoring and control.

Thermocouple bare wire is also flexible and customizable. They are usually in the form of exposed wires that can be easily bent, cut and installed where the temperature needs to be measured. In addition, depending on the specific needs, options such as different lengths, diameters and connectors are available to meet the requirements of specific applications.

Code	Wire Component of the thermocouple
	+Positive leg	- Negative Leg
N	Ni-Cr-Si(NP)	Ni-Si-magnesium (NN)
K	Ni-Cr(KP)	Ni-Al(Si) (KN)
E	Ni-Cr(EP)	Cu-Ni (EN)
J	Iron (JP)	Cu-Ni (JN)
T	Copper (TP)	Cu-Ni (TN)
B	Platinum Rhodium-30%	Platinum Rhodium -6%
R	Platinum Rhodium-13%	Platinum
S	Platinum Rhodium -10%	Platinum

ASTM	(American Society for Testing and Materials) E 230
ANSI	(American National Standard Institute) MC 96.1
IEC	(European Standard by the International Electrotechnical Commission 584)-1/2/3
DIN	(Deutsche Industrie Normen) EN 60584-1/2
BS	(British Standards) 4937.1041, EN 60584-1/2
NF	(Norme Francaise) EN 60584-1/2-NFC 42323-NFC 42324
JIS	(Japanese Industrial Standards) C 1602-C 1610
GOST	(Unification of the Russian Specifications) 3044

Using Occastion of Different Thermocouple
Thermocouple Type		Working Atmosphere	Working Temperature
Type K	KP	Oxidizing	-200 to +1200℃
	KN	Inert
Type K	NP	Oxidizing	-200 to +1200℃
	NN	Oxidizing
Type K	EP	Oxidizing	-200 to +900℃
	EN	Oxidizing
Type K	JP	Oxidizing(use in high temp)	-40 to +750℃
	JN	Reducing, Inert, Vacuum
Type K	TP	Oxidizing,Vacuum	-200 to +350℃
	TN	Reducing, Vacuum
