PromotionNew Product K Type Thermocouple 1200 Degree 0.2mm 8mm Diameter Thermocouple Bare Wire J Types

Ask Lasest Price
Brand Name :	Victory
Model Number :	K,N,E,J,T,B,R,S Types
Certification :	CE,ROHS,ISO 9001
Price :	5 - 499 kilograms $35.00
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	300 tons per month
Delivery Time :	5-21 days

Add to Cart

Product Details
Company Profile

PromotionNew Product K Type Thermocouple 1200 Degree 0.2mm 8mm Diameter Thermocouple Bare Wire J Types

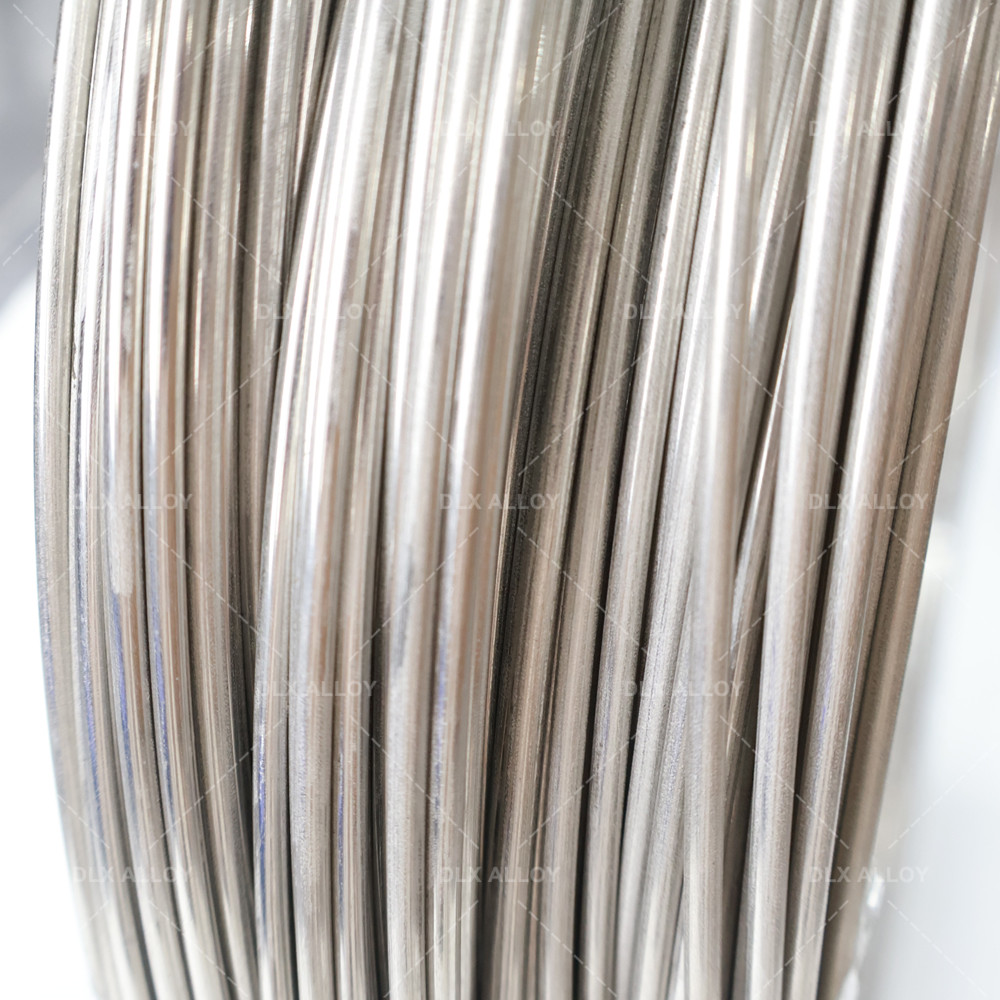

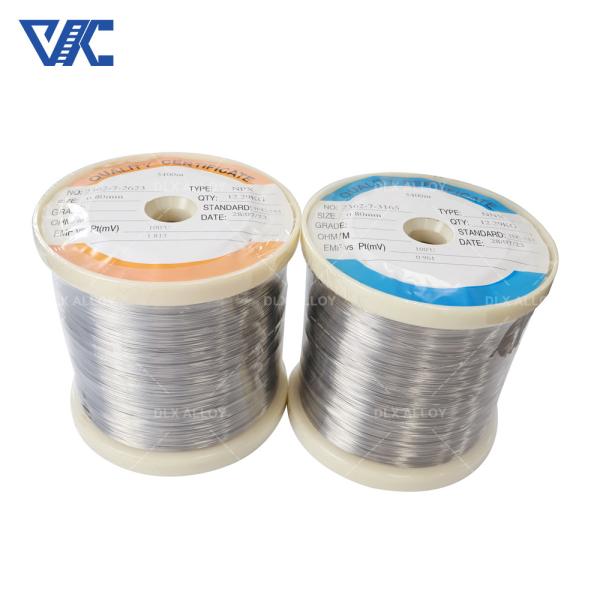

The Thermocouple bare wire product line includes a variety of models (such as K-type, J-type, T-type and E-type, etc.) suitable for a wide range of temperature measurement and control applications. These bare wires feature high precision, fast response, and flexible installation, and are suitable for industrial furnaces, heating equipment, heat treatment processes, and laboratory instruments. They accommodate a wide temperature range, provide accurate temperature readings, and are flexible and customizable to meet a variety of needs.

Code	Wire Component of the thermocouple
	+Positive leg	- Negative Leg
N	Ni-Cr-Si(NP)	Ni-Si-magnesium (NN)
K	Ni-Cr(KP)	Ni-Al(Si) (KN)
E	Ni-Cr(EP)	Cu-Ni (EN)
J	Iron (JP)	Cu-Ni (JN)
T	Copper (TP)	Cu-Ni (TN)
B	Platinum Rhodium-30%	Platinum Rhodium -6%
R	Platinum Rhodium-13%	Platinum
S	Platinum Rhodium -10%	Platinum

ASTM	(American Society for Testing and Materials) E 230
ANSI	(American National Standard Institute) MC 96.1
IEC	(European Standard by the International Electrotechnical Commission 584)-1/2/3
DIN	(Deutsche Industrie Normen) EN 60584-1/2
BS	(British Standards) 4937.1041, EN 60584-1/2
NF	(Norme Francaise) EN 60584-1/2-NFC 42323-NFC 42324
JIS	(Japanese Industrial Standards) C 1602-C 1610
GOST	(Unification of the Russian Specifications) 3044

Using Occastion of Different Thermocouple
Thermocouple Type		Working Atmosphere	Working Temperature
Type K	KP	Oxidizing	-200 to +1200℃
	KN	Inert
Type K	NP	Oxidizing	-200 to +1200℃
	NN	Oxidizing
Type K	EP	Oxidizing	-200 to +900℃
	EN	Oxidizing
Type K	JP	Oxidizing(use in high temp)	-40 to +750℃
	JN	Reducing, Inert, Vacuum
Type K	TP	Oxidizing,Vacuum	-200 to +350℃
	TN	Reducing, Vacuum
