Mineral Insulated Cable MI Thermocouple Cable With Certifications

Ask Lasest Price
Brand Name :	Victory
Model Number :	K,N,E,J,T,B,R,S Types
Certification :	CE,ROHS,ISO 9001
Price :	50 - 499 meters $3.00
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	50 - 999 meters $2.88
Delivery Time :	5-21 days

Add to Cart

Product Details
Company Profile

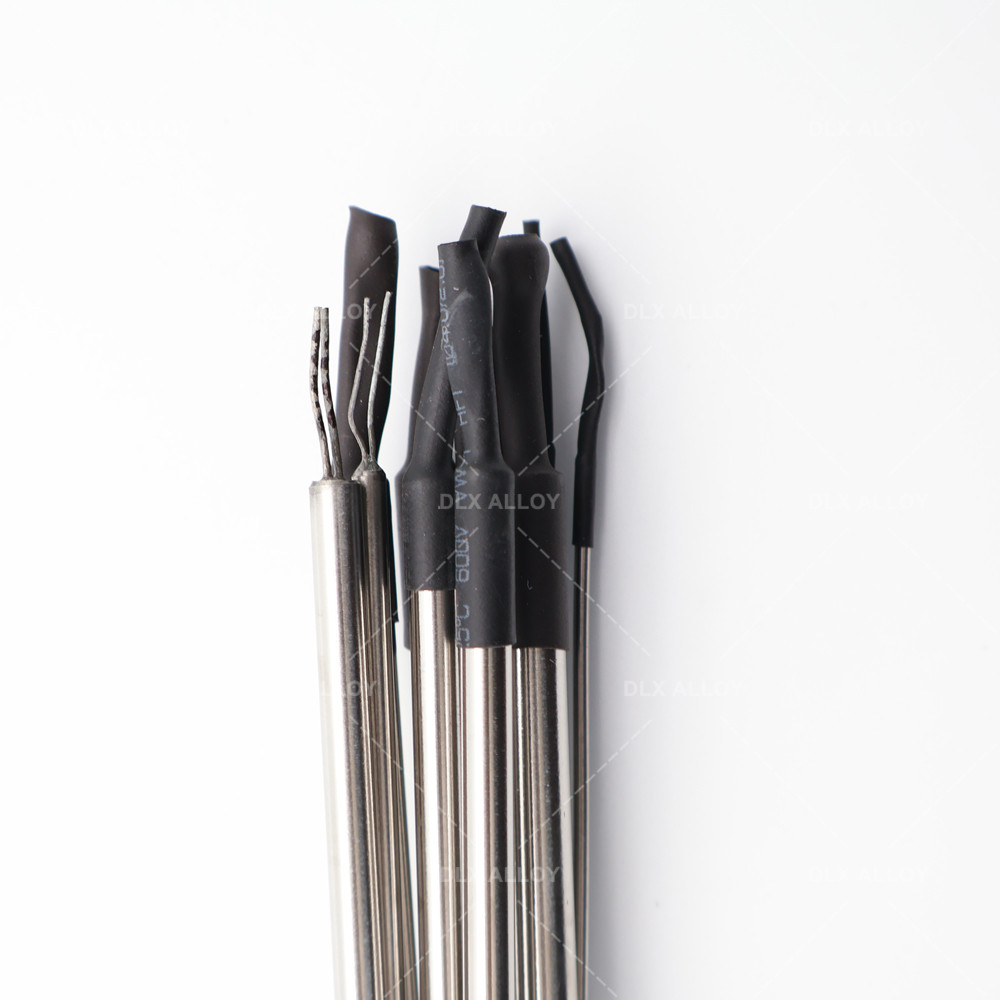

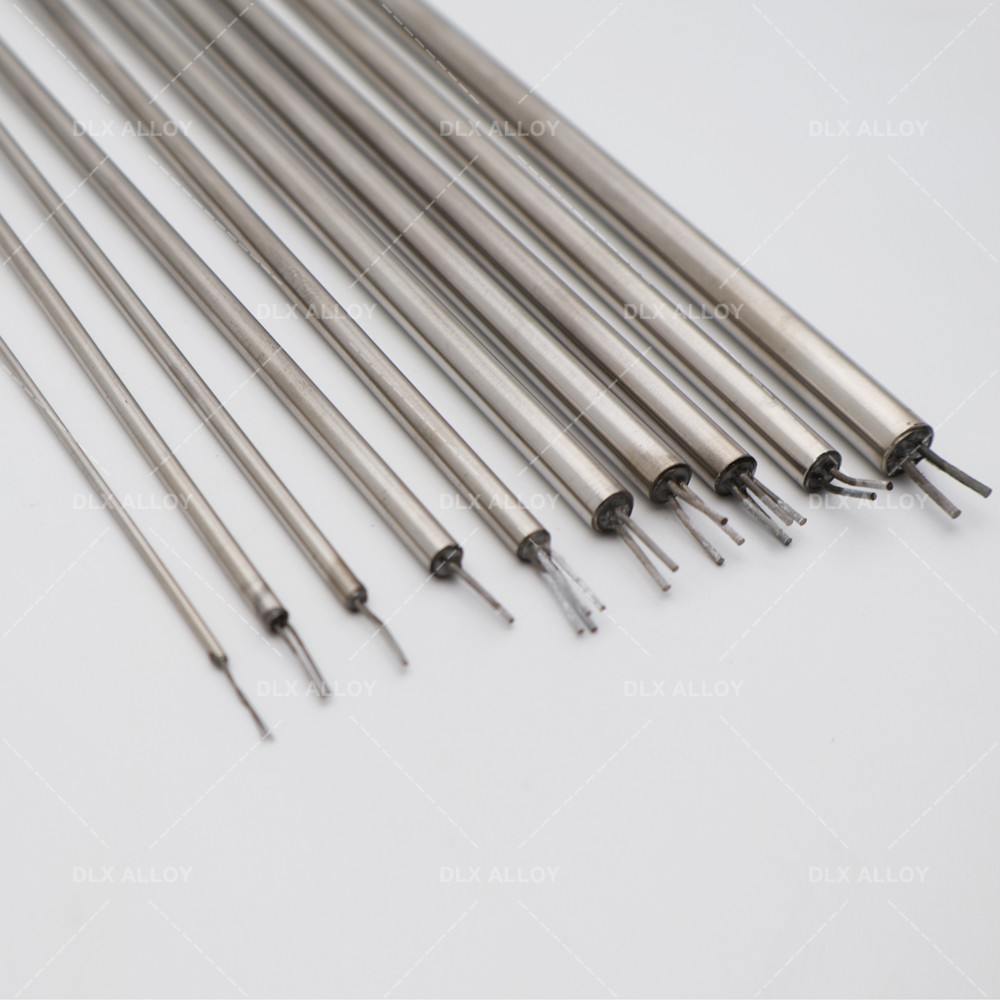

Mineral Insulated Cable MI Thermocouple Cable With Certifications

MI Thermocouple Cable is a high performance mineral insulated thermocouple cable that provides reliable temperature measurement and control solutions. This product series covers a variety of models, including K-type, N-type, E-type, J-type, T-type, B-type, R-type and S-type. Each model corresponds to a different thermocouple type, suitable for various temperature ranges and application scenarios.

Type K thermocouples are suitable for a wide range of industrial applications, with a wide temperature range and good linear characteristics. N-type thermocouples are suitable for high temperature measurements and have high stability and oxidation resistance. Type E thermocouples are suitable for higher temperature ranges and have good stability and low drift performance. Type J thermocouples are suitable for lower temperature ranges and have higher sensitivity and linearity. T-type thermocouples are suitable for low-temperature measurements and have good stability and corrosion resistance. Type B, R and S thermocouples are suitable for extremely high temperature measurements and have the characteristics of high stability and strong corrosion resistance.

Code	Wire Component of the thermocouple
	+Positive leg	- Negative Leg
N	Ni-Cr-Si(NP)	Ni-Si-magnesium (NN)
K	Ni-Cr(KP)	Ni-Al(Si) (KN)
E	Ni-Cr(EP)	Cu-Ni (EN)
J	Iron (JP)	Cu-Ni (JN)
T	Copper (TP)	Cu-Ni (TN)
B	Platinum Rhodium-30%	Platinum Rhodium -6%
R	Platinum Rhodium-13%	Platinum
S	Platinum Rhodium -10%	Platinum

Material	Type	Grade	Working temperature (deg)		Tolerance	Standard
			Long Term	Short Term
NiCr-NiSi	K	1	-40~1100	-40~1300	±1.5 deg	GB/T 2614-1998
		2			±2.5 deg
NiCr-CuNi	E	1	-40~800	-40~900	±1.5 deg	GB/T 4993-1998
		2			±2.5 deg
Fe-Constantan	J	1	-40~600	-40~800	±1.5 deg	GB/T 4994-1998
		2			±2.5 deg
Cu-CuNi	T	1	-200~300	-200~400	±0.5 deg	GB/T 2903-1998

Outer Sheath(mm)		core wire Dia.( mm)		Outer Sheath(mm)o core wire Dia.( mm)				Length(m)
Out Dia	Wall Thickness	K,N,E,J,T Types	S,R,B Types	K,N Types	E,J,T Types	S,R Types	B Types	Length(m)
0.5	0.05-0.10	0.08-0.12	...	SS304, SS321, SS316, SS310, INCL600	SS30, SS32, SS316	INCL60, INCL800	INCL60, INCL800	500
1.0	0.10-0.20	0.15-0.20	...					300
1.5	0.15-0.25	0.23-0.30	...					200
1.6	0.16-0.26	0.26-0.36	...					200
2.0	0.25-0.35	0.40-0.50	0.25-.030					180
3.0	0.38-0.48	0.50-0.60	0.30-0.40					80
3.2	0.48-0.58	0.58-0.68	0.30-0.40					75
4.0	0.52-0.62	0.60-0.70	0.35-0.40					70
4.8	0.73-0.83	0.75-0.85	0.40-0.45					40
5.0	0.78-0.88	0.80-0.90	0.40-0.45					40
6.0	0.98-1.08	0.90-1.10	0.45-0.50					30
6.4	1..05-1.15	1.02-1.12	0.45-0.50					30
8.0	1.30-1.44	1.30-1.40	0.45-0.50					20
12.7	1.75-1.90	1.95-2.05	...					10
