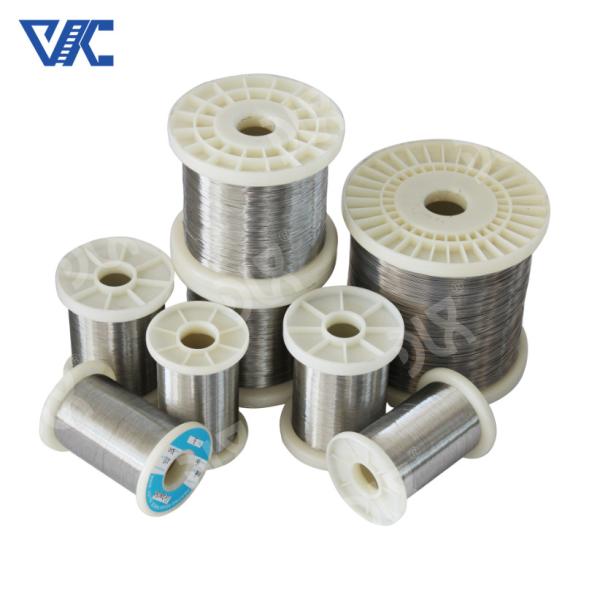

High Purity Pure Nickel Wire 0.5mm 0.6mm 0.7mm 0.8mm Nickel Wire Prices

Ask Lasest Price
Brand Name :	Victory
Model Number :	N4,N6,Ni200,Ni201
Certification :	ISO9001,ROHS
Price :	5 - 99 kilograms US$45.00
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	300 tons per month
Delivery Time :	7-25 days

Add to Cart

Product Details
Company Profile

High Purity Pure Nickel Wire 0.5mm 0.6mm 0.7mm 0.8mm Nickel Wire Prices

A significant feature of Pure Nickel Wire is its low-temperature coefficient. Its resistivity changes less at low temperatures, making it an important component in the manufacturing of low-temperature resistors and superconducting materials. In addition, Pure Nickel Wire also has good ductility and plasticity, which can be easily processed into various shapes and sizes of wire, wire, and foil. This processability enables Pure Nickel Wire to be widely used in fields such as electronics, electrical, and heat treatment.

Pure Nickel Wire is widely used in multiple industries. In the field of electronics, it is commonly used to manufacture resistance wires, electronic components, and thermocouples. In the chemical industry, Pure Nickel Wire is widely used in the manufacturing of corrosion-resistant equipment, catalysts, and electrolytic cells. In addition, it is widely used in the fields of aerospace, shipbuilding, automotive, and energy, for manufacturing key components such as high-temperature alloys, battery components, heating elements, and heat exchangers.

Specification

Grade	Ni+Co	Cu	Si	Mn	C	Mg	S	P	Fe
N4	99.9	≤0.015	≤0.03	≤0.002	≤0.01	≤0.01	≤0.001	≤0.001	≤0.04
N6	99.5	0.10	0.10	0.05	0.10	0.10	0.005	0.002	0.10
Ni201	≥99.9	≤0.25	≤0.35	≤0.35	≤0.02	/	≤0.01	/	≤0.40
Ni200	≥99.6	≤0.25	≤0.35	≤0.35	≤0.15	/	≤0.01	/	≤0.40

Physical Data
Density	8.89g/cm3
Specific Heat	0.109(456 J/kg.ºC)
Electrical Resistivity	0.096×10-6ohm.m
Melting Point	1435-1446ºC
Thermal Conductivity	70.2 W/m-K
Mean Coeff Thermal Expansion	13.3×10-6m/m.ºC

Typical Mechanical Properties
Mechanical Properties	Nickel 200
Tensile Strength	462 Mpa
Yield Strength	148 Mpa
Elongation	47%

High Purity Pure Nickel Wire 0.5mm 0.6mm 0.7mm 0.8mm Nickel Wire Prices

Shape	Size(mm)
Wire	0.025-10
Ribbon	(0.05-0.2)*(0.5-6)
Strip	(0.05-0.5)*(5-200)
